1. Inleiding
This manual provides essential information for the proper installation, function, maintenance, and troubleshooting of the Buderus Burner Door Insulation, Part Number 63002411. This component is designed to provide thermal protection for the burner door assembly in Buderus G105U and G115U boiler models, specifically those with a power output of 21-28 kW. Adherence to these instructions ensures optimal performance and safety of your heating system.
2. Veiligheidsinligting
Always prioritize safety when working with heating systems. Improper installation or maintenance can lead to serious injury or property damage. Consult a qualified heating technician if you are unsure about any step.
- Ontkoppel krag: Before beginning any work, ensure the boiler's electrical power supply is completely disconnected at the main breaker.
- Laat verkoeling toe: Allow the boiler and all associated components to cool down completely before handling. Hot surfaces can cause severe burns.
- Dra beskermende toerusting: Use appropriate personal protective equipment (PPE), including gloves and eye protection.
- Hanteer versigtig: The insulation material may be fragile. Handle carefully to prevent breakage or release of fibers.
- Professionele installasie word aanbeveel: Installation by a certified HVAC technician is strongly recommended.
3. Produk verbyview
The Buderus Burner Door Insulation (Part No. 63002411) is a critical thermal barrier designed to fit precisely within the burner door of compatible Buderus boilers. Its specific shape and material composition are engineered to withstand high temperatures and prevent heat loss, contributing to the boiler's efficiency and longevity.

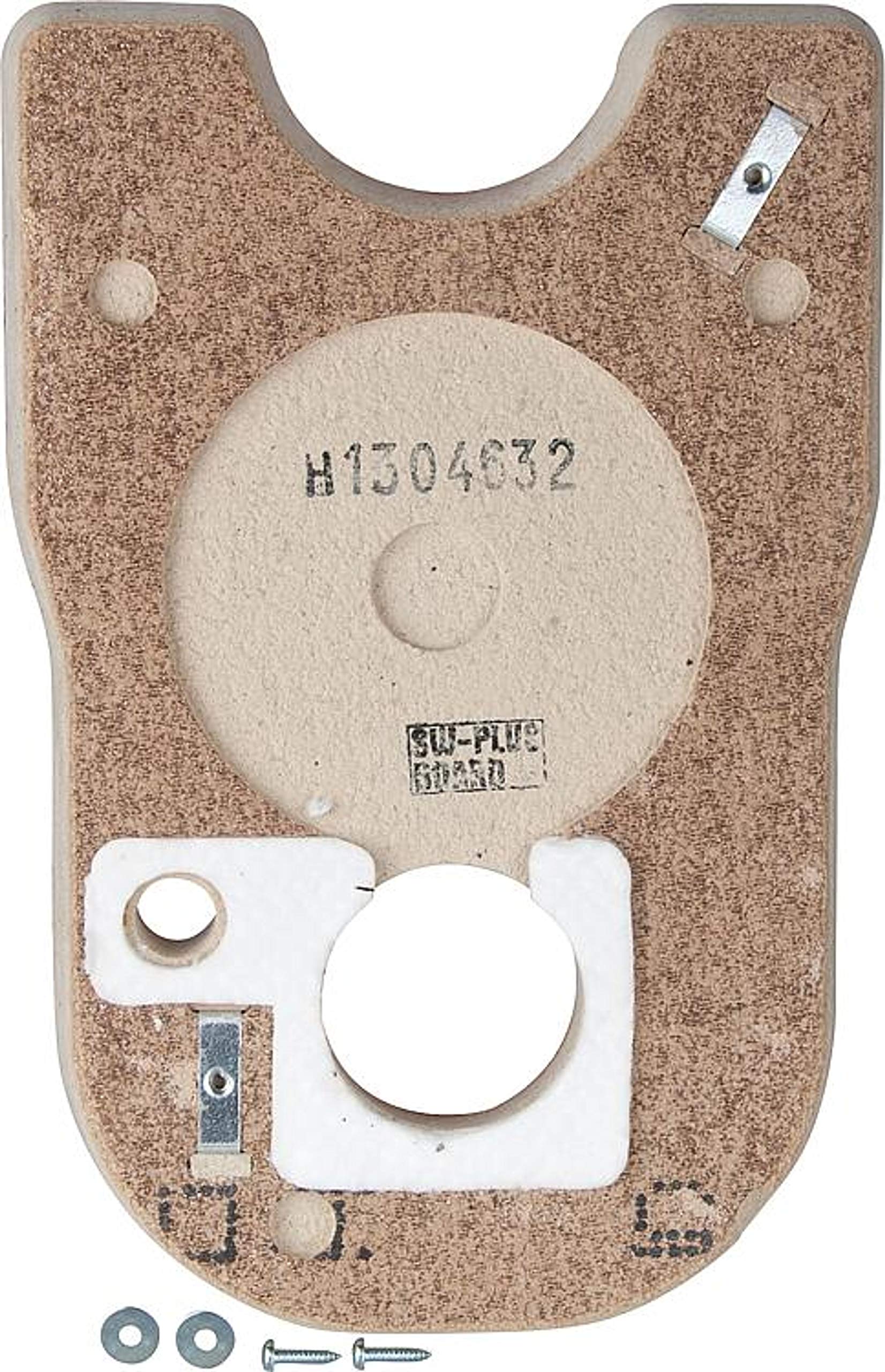

Figuur 1: Buderus Burner Door Insulation (Part No. 63002411). This image displays the Buderus Burner Door Insulation, a precisely shaped ceramic fiber component designed for thermal protection. It features a central circular opening and specific cutouts to fit the burner door assembly of Buderus G105U and G115U boilers. The surface shows a light beige, textured finish with markings 'H1025723' and '63002411' (implied from product info) indicating its part number and manufacturing details. Small metal clips are visible, suggesting attachment points for secure installation.
4. Installasie-instruksies (Opstelling)
Follow these steps carefully for the correct installation of the burner door insulation:
- Voorbereiding: Ensure the boiler is turned off and has completely cooled down. Disconnect the main power supply to the boiler.
- Access Burner Door: Open or remove the boiler's outer casing and locate the burner door assembly. Refer to your specific boiler model's service manual for detailed access procedures.
- Remove Old Insulation (if applicable): Carefully remove any existing, damaged, or worn insulation from the burner door. Note its orientation for reference. Dispose of old insulation according to local regulations.
- Skoon oppervlak: Clean the surface where the new insulation will be placed, ensuring it is free from debris, rust, or old adhesive residues.
- Position New Insulation: Carefully place the new Buderus Burner Door Insulation (Part No. 63002411) into the designated area on the burner door. Ensure it aligns correctly with any mounting points, cutouts, or pins. The insulation is designed for a precise fit.
- Secure Insulation: If the design includes clips, screws, or other fasteners, secure the insulation firmly in place. Do not overtighten if using screws, as the material can be brittle.
- Hermonteer: Reassemble the burner door and boiler casing, ensuring all connections and seals are properly restored.
- Toetsstelsel: Restore power to the boiler and perform a functional test to ensure proper operation and no unusual noises or smells. Monitor the boiler's performance for any signs of heat loss around the burner door.
5. Funksie en werking
The burner door insulation serves as a crucial thermal barrier. During boiler operation, it contains the high temperatures within the combustion chamber, preventing heat from escaping through the burner door. This containment of heat is vital for:
- Energiedoeltreffendheid: Minimizing heat loss, which directly contributes to the boiler's overall energy efficiency.
- Komponentbeskerming: Protecting external components of the burner door and surrounding boiler structure from excessive heat, extending their lifespan.
- Veiligheid: Reducing the surface temperature of the burner door, enhancing operational safety.
6. Onderhoud
Regular inspection of the burner door insulation is recommended as part of your boiler's annual maintenance schedule. This should be performed by a qualified technician.
- Visuele inspeksie: With the boiler cooled and power disconnected, visually inspect the insulation for any signs of damage, such as cracks, crumbling, erosion, or discoloration.
- Integriteitstoets: Gently check if the insulation is still securely in place and has not shifted or become loose.
- Vervanging: If any significant damage or degradation is observed, the insulation should be replaced immediately to maintain boiler efficiency and safety. Refer to the installation instructions for replacement.
7. Probleemoplossing
Issues related to the burner door insulation typically manifest as reduced boiler efficiency or visible damage.
| Simptoom | Moontlike oorsaak | Oplossing |
|---|---|---|
| Excessive heat radiating from burner door | Damaged, cracked, or missing insulation. | Inspect insulation. Replace if damaged or worn. |
| Reduced boiler efficiency / Higher fuel consumption | Compromised thermal barrier due to insulation damage. | Inspect insulation. Replace if damaged or worn. Ensure proper installation. |
| Visible cracks or crumbling of insulation material | Normal wear and tear, thermal stress, or physical damage. | Vervang die isolasie. |
8. Spesifikasies
- Vervaardiger: Buderus | Sieger
- Onderdeelnommer: 63002411
- Produk Tipe: Burner Door Insulation (Thermal Protection)
- Verenigbaarheid: Buderus G105U, G115U Boiler Models
- Boiler Power Range: 21-28 kW
- Materiaal: High-temperature ceramic fiber (typical for this application)
9. Waarborg en Ondersteuning
For specific warranty information regarding the Buderus Burner Door Insulation (Part No. 63002411), please refer to the documentation provided with your original boiler or contact Buderus customer support directly. For technical assistance or to locate authorized service providers, visit the official Buderus website or consult your local heating system specialist.
Kontakinligting: Please refer to the official Buderus website or your product's original documentation for the most current contact details.
