APW Wyott HRS-20S Non-Stick Hot Dog Roller Grill User Manual

Belangrike veiligheidsinligting

Please read this manual thoroughly before installing, operating, or performing maintenance on this equipment. Failure to follow these instructions may result in property damage, injury, or death. Keep this manual for future reference.

• Hierdie toestel is slegs bedoel vir kommersiële gebruik.
• Maak seker dat die eenheid behoorlik geaard is.
• Do not immerse the unit in water or spray with water.
• Ontkoppel altyd die kragtoevoer voor skoonmaak of onderhoud.
• Keep hands clear of moving rollers during operation.
• Surfaces will be hot during and after operation. Use caution.

Opstel instruksies

1. Uitpak

Carefully remove the hot dog roller grill from its packaging. Inspect the unit for any shipping damage. Report any damage to the carrier immediately.

2. plasing

Place the grill on a stable, level, non-combustible surface. Ensure adequate clearance around the unit for proper ventilation and safe operation. Do not place near heat-sensitive materials.

3. Elektriese aansluiting

This unit operates on 120 Volts. Connect the grill to a dedicated, properly grounded electrical outlet. Do not use extension cords or adapters.

4. Aanvanklike skoonmaak

Before first use, clean the rollers and all accessible surfaces with a mild detergent and warm water. Rinse thoroughly and dry completely. Refer to the "Cleaning and Maintenance" section for detailed instructions.

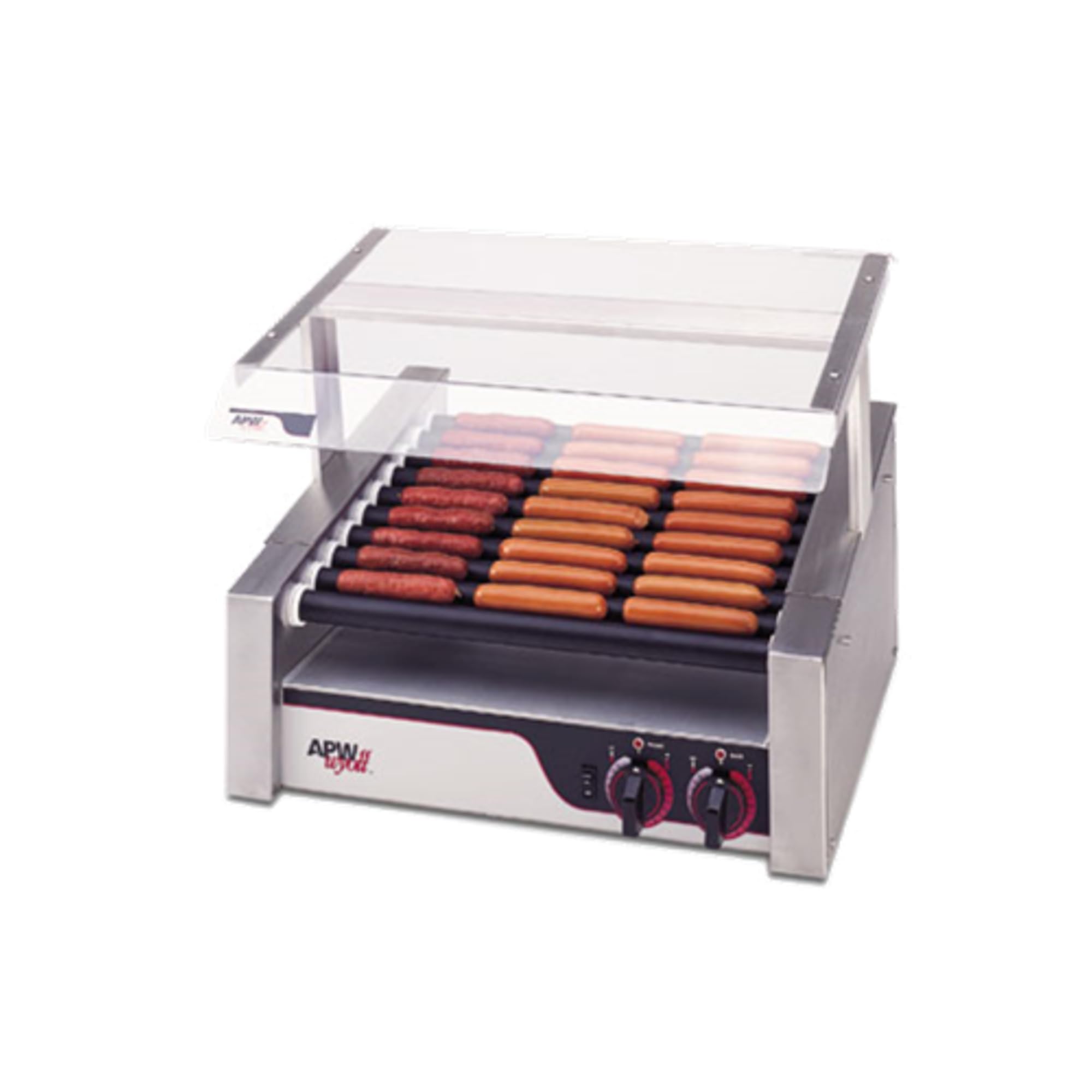

Figure 1: APW Wyott HRS-20S Hot Dog Roller Grill. This image shows the overall design of the roller grill with its slanted non-stick rollers and stainless steel construction.

Bedryfsinstruksies

1. Power On and Preheating

1. Ensure the unit is plugged into a grounded 120V outlet.
2. Draai die kragskakelaar na die "AAN"-posisie.
3. Set the infinite control knob(s) to the desired cooking temperature. For initial preheating, set to a higher temperature.
4. Allow the grill to preheat for approximately 15-20 minutes, or until the rollers reach the desired temperature.

2. Loading Hot Dogs

• Place hot dogs evenly across the non-stick rollers. Avoid overcrowding to ensure even cooking.
• The slanted design helps hot dogs roll consistently.

3. Cooking and Holding

• Monitor the hot dogs as they cook. The rollers will continuously turn to ensure even heating.
• Adjust the infinite control knob(s) as needed to maintain the desired cooking or holding temperature.
• Once cooked, the hot dogs can be held at a lower temperature setting until served.

Figuur 2: Example of control panel with infinite control knobs. This image illustrates where the temperature control knobs are typically located on the unit.

Skoonmaak en Onderhoud

Regular cleaning and maintenance will extend the life of your APW Wyott HRS-20S hot dog roller grill and ensure optimal performance.

Daaglikse skoonmaak

1. Ontkoppel krag: Ontkoppel altyd die eenheid en laat dit heeltemal afkoel voordat dit skoongemaak word.
2. Verwyder puin: Carefully remove any food debris from the rollers and drip tray.
3. Skoon rollers: Wipe the non-stick rollers with a damp cloth and mild, non-abrasive detergent. Do not use steel wool or abrasive cleaners, as this can damage the non-stick coating. Rinse with a clean, damp doek en droog deeglik af.
4. Skoon buitekant: Vee die vlekvrye staal buitekant af met advertensieamp cloth and mild detergent. Polish with a soft, dry cloth to maintain its finish.
5. Maak drupbak skoon: Remove and empty the drip tray. Wash it with warm, soapy water, rinse, and dry before replacing.

Periodieke instandhouding

• Inspect the power cord for any damage. If damaged, contact a qualified service technician.
• Ensure all feet are intact and providing stable support.
• Check for any unusual noises during operation, which may indicate a need for professional servicing.

Figure 3: Illustrative image of cleaning the non-stick rollers. This image demonstrates the process of wiping down the rollers for daily cleaning.

Probleemoplossing

Voordat u die diens kontak, hersien assebliefview die volgende algemene probleme en oplossings:

If these solutions do not resolve the issue, please contact APW Wyott customer support or a qualified service technician.

Spesifikasies

Waarborg en Ondersteuning

For warranty information, technical support, or to order replacement parts, please contact APW Wyott customer service directly. Keep your purchase receipt and model number (HRS-20S) available when contacting support.

Jy kan gewoonlik kontakbesonderhede vind op die vervaardiger se amptelike webwerf. webwebwerf of op die produk se oorspronklike verpakking.
