EMOS Antenna Socket EU 3614 User Manual

Inleiding

This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your EMOS Antenna Socket EU 3614. Please read this manual thoroughly before installation and retain it for future reference.

Image 1: EMOS Antenna Socket EU 3614 in its packaging.

Veiligheidsinligting

• Elektriese veiligheid: Installation should only be performed by a qualified electrician or a person with sufficient electrical knowledge to avoid electric shock.
• Kragontkoppeling: Always disconnect power to the circuit at the main breaker before installing or servicing the antenna socket.
• Behoorlike gereedskap: Use appropriate tools for installation to prevent damage to the socket or injury.
• Slegs binnenshuise gebruik: This product is designed for indoor use in dry environments. Do not expose to moisture or extreme temperatures.
• Ventilasie: Verseker voldoende ventilasie rondom die installasiearea.

Pakketinhoud

Verifieer dat alle komponente teenwoordig is voordat u met die installasie begin:

• 1x EMOS Antenna Socket EU 3614
• Mounting screws (typically included with wall outlets)
• Instruksiehandleiding (hierdie dokument)

Produk verbyview

The EMOS Antenna Socket EU 3614 is a wall outlet socket designed for TV and Radio signals. It features a loop-through design, allowing for connection in series within an antenna distribution system. It includes IEC type connectors for both TV and Radio outputs.

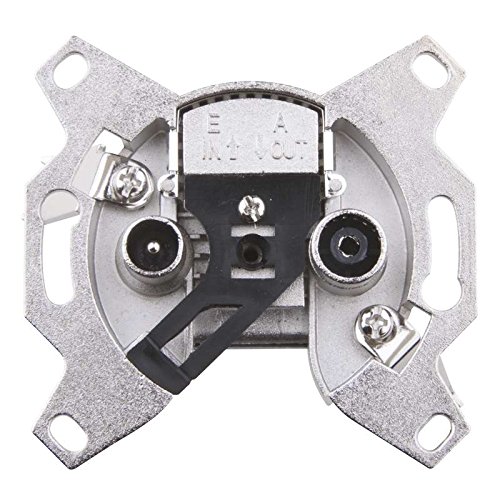

Beeld 2: Voorkant view of the EMOS Antenna Socket EU 3614, showing the TV and Radio ports.

Prent 3: Agter view of the EMOS Antenna Socket EU 3614, illustrating the input and output terminals.

Opstelling en installasie

Follow these steps for proper installation of the antenna socket:

1. Skakel af: Maak seker dat die hoofkragtoevoer na die installasiearea by die stroombreker afgeskakel is.
2. Berei bedrading voor: Carefully strip the outer insulation of the coaxial cable to expose the inner conductor and braiding.
3. Connect Input Cable: Connect the incoming coaxial cable to the "IN" terminal on the rear of the socket. Ensure the inner conductor is securely fastened and the braiding makes good contact with the ground clamp.
4. Connect Output Cable (if applicable): If using the loop-through function to connect to another socket, connect an outgoing coaxial cable to the "OUT" terminal.
5. Monteer sok: Secure the antenna socket into the wall box using the provided mounting screws. Ensure it is flush and stable.
6. Installeer frontplaat: Attach the decorative faceplate (not included, typically part of a wall plate system) over the socket.
7. Herstel krag: Sodra die installasie voltooi is en alle verbindings veilig is, herstel die krag by die stroombreker.

Let wel: The socket features IEC type connectors for TV and Radio. Ensure your connecting cables have compatible plugs.

Bedryfsinstruksies

Once installed, the EMOS Antenna Socket EU 3614 functions passively to provide signal access. To use:

1. Connect TV: Plug your television's antenna cable into the TV port (male IEC connector) on the socket.
2. Connect Radio: Plug your radio's antenna cable into the Radio port (female IEC connector) on the socket.
3. Skandeer kanale: Use your television or radio's menu to perform a channel scan to detect available broadcasts.

The socket provides a terminal attenuation of 14 dB for both TV and Radio outputs, and a through attenuation of 1.5 dB for the loop-through connection.

Onderhoud

The EMOS Antenna Socket EU 3614 requires minimal maintenance:

• Skoonmaak: Periodically wipe the surface of the socket with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Inspeksie: Occasionally check for any visible damage or loose connections. If damage is found, disconnect power and have it inspected by a qualified professional.

Probleemoplossing

If you experience issues with your antenna socket, consider the following:

• No Signal / Poor Signal Quality:
  • Ensure all coaxial cables are securely connected to the socket and your devices.
  • Verify that the main antenna or cable TV source is functioning correctly.
  • Check for damage to the coaxial cables or the socket itself.
  • Perform a channel scan on your TV/radio.
• Loose Socket:
  • Disconnect power and re-tighten the mounting screws.

If problems persist, consult a qualified technician.

Spesifikasies

Waarborg en Ondersteuning

EMOS products are manufactured to high-quality standards. For warranty information or technical support, please refer to the official EMOS webwebwerf of kontak u plaaslike verspreider. Bewaar u aankoopbewys as bewys van aankoop.

Vir verdere hulp kan u die EMOS brand page on Amazon.
