GIGABYTE GA-B150M-D3H Micro ATX Motherboard Instruction Manual

1. Inleiding

This manual provides detailed instructions for installing, configuring, and maintaining your GIGABYTE GA-B150M-D3H Micro ATX motherboard. The GA-B150M-D3H is designed to support 6th Generation Intel Core Processors and features Dual Channel DDR4 memory, PCIe Gen3 x4 M.2 connector, SATA Express, and 8-channel HD audio with Audio Noise Guard.

Please read this manual thoroughly before beginning installation to ensure proper setup and operation.

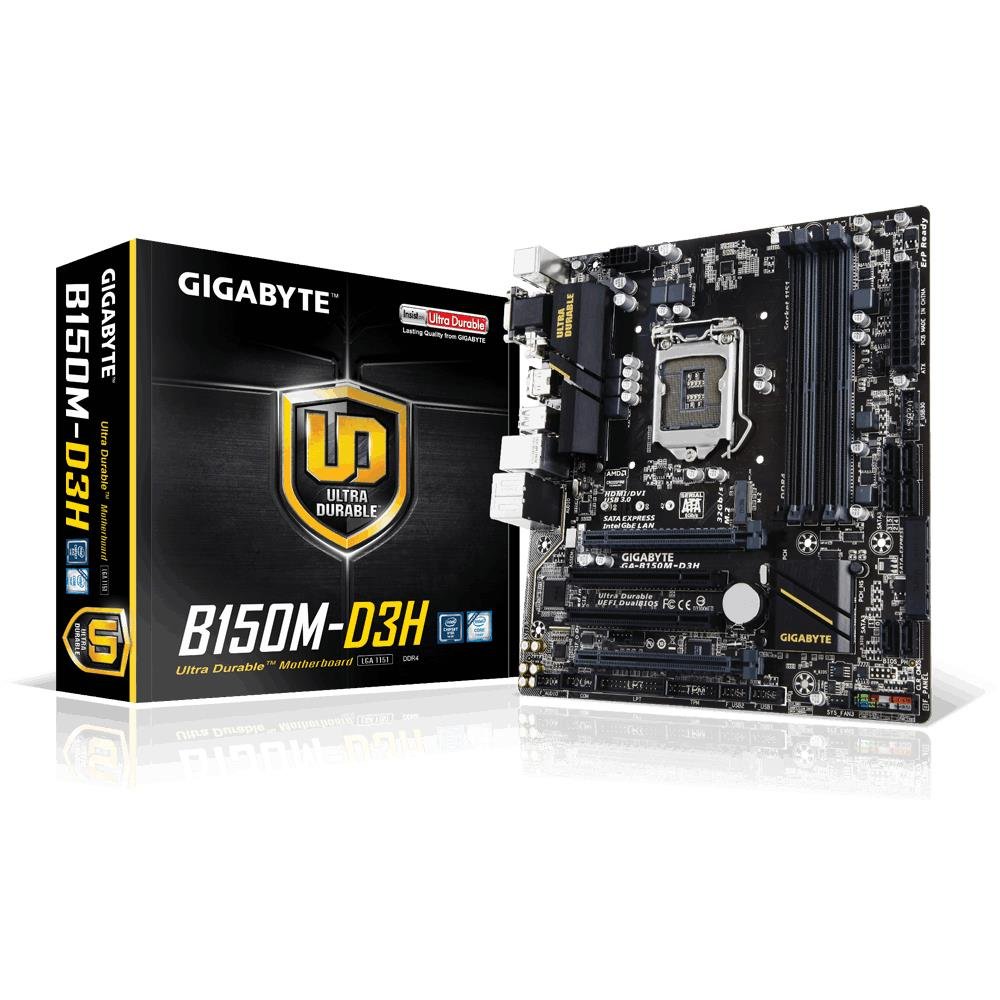

Image 1.1: GIGABYTE GA-B150M-D3H Micro ATX Motherboard. This image displays the overall layout of the motherboard, highlighting its compact Micro ATX form factor and various component slots.

2. Veiligheidsinligting

Observe the following safety precautions to prevent damage to the motherboard and injury to yourself:

• Ontkoppel altyd die kragkabel van die muursok voordat u enige komponente aanraak.
• Dra 'n antistatiese polsbandjie of raak gereeld 'n geaarde metaalvoorwerp aan om statiese elektrisiteit te ontlaai.
• Hanteer die moederbord aan die kante om sensitiewe komponente nie aan te raak nie.
• Hou die moederbord weg van vog en uiterste temperature.
• Verseker behoorlike ventilasie binne die rekenaarkas om oorverhitting te voorkom.

3. Pakketinhoud

Verifieer dat alle items in jou moederbordpakket teenwoordig is:

• GIGABYTE GA-B150M-D3H Motherboard
• Gebruikershandleiding
• I / O-skild
• SATA kabels
• Bestuurder-CD/DVD

Note: Contents may vary slightly depending on region or revision.

4. Moederborduitleg

Familiarize yourself with the various components and connectors on the GA-B150M-D3H motherboard.

Image 4.1: GIGABYTE GA-B150M-D3H Motherboard Layout. This image provides a visual reference for the location of key components such as the CPU socket, DIMM slots, PCIe slots, SATA ports, and M.2 connector.

Sleutelkomponente:

• LGA 1151 SVE-sokkel: For 6th Generation Intel Core Processors.
• DDR4 DIMM Slots (4): Supports Dual Channel DDR4 memory up to 2133 MHz.
• PCIe-gleuwe: Includes PCIe Gen3 x16 for graphics cards and PCIe x1 slots for expansion.
• M.2 Connector: Supports PCIe NVMe & SATA SSDs with up to 32Gb/s data transfer.
• SATA Express Connector: For up to 16Gb/s data transfer.
• SATA 6Gb/s-poorte: Vir die koppeling van tradisionele SATA-bergingstoestelle.
• 24-Pin ATX Power Connector: Hoofkragtoevoer.
• 8-Pin ATX 12V Power Connector: CPU power input.
• Voorpaneelopskrifte: For power button, reset button, LED indicators, and USB ports.
• Oudioverbindings: 8-channel HD Audio with high quality capacitors and Audio Noise Guard.

5. Opstelling en installering

Volg hierdie stappe vir die korrekte installering van jou moederbord en komponente.

5.1. Installering van die SVE

1. Locate the LGA 1151 CPU socket.
2. Maak die SVE-sokhendel oop en lig die laaiplaat op.
3. Rig die SVE versigtig met die sok in lyn en maak seker dat die goue driehoek op die SVE ooreenstem met die driehoek op die sok. Moenie die SVE in die sok forseer nie.
4. Laat sak die laaiplaat en maak dit met die hefboom vas.

5.2. Installering van die SVE-verkoeler

Refer to your CPU cooler's instruction manual for specific installation steps. Ensure thermal paste is applied correctly between the CPU and cooler base.

5.3. Installeer geheue (RAM)

1. Maak die knippies aan beide kante van die DDR4 DIMM-gleuwe oop.
2. Rig die geheuemodule met die gleuf en maak seker dat die kerf op die module ooreenstem met die sleutel in die gleuf.
3. Druk stewig aan beide kante van die geheuemodule totdat die knippies in plek klik.
4. For dual-channel performance, install memory modules in matching colored slots (e.g., DIMM1 and DIMM2).

5.4. Installing Expansion Cards

1. Remove the metal bracket from the desired PCIe slot on your computer case.
2. Align the expansion card with the PCIe slot and press down firmly until it is seated correctly.
3. Bevestig die kaart met 'n skroef aan die rekenaarkas.

5.5. Connecting Storage Devices

• SATA-toestelle: Connect one end of the SATA data cable to a SATA 6Gb/s port on the motherboard and the other end to your hard drive or SSD. Connect the SATA power cable from your power supply to the device.
• M.2 SSD: Insert the M.2 SSD into the M.2 slot at an angle, then gently push it down and secure it with the provided screw.
• SATA Express: If using a SATA Express device, connect it to the designated SATA Express connector.

5.6. Aansluiting van voorpaneelverbindings

Connect the cables from your computer case's front panel (power button, reset button, HDD LED, power LED, front USB, front audio) to the corresponding headers on the motherboard. Refer to the motherboard layout diagram for exact locations and pin assignments.

5.7. Aansluiting van kragtoevoer

1. Connect the 24-pin ATX main power connector from your power supply to the 24-pin power socket on the motherboard.
2. Connect the 8-pin ATX 12V CPU power connector to the 8-pin socket near the CPU.
3. Maak seker dat alle kragverbindings veilig is.

6. Bedryfsinstruksies

6.1. Eerste opstart

After assembling all components, connect your monitor, keyboard, and mouse. Power on the system. The system should display the GIGABYTE splash screen and then enter the BIOS/UEFI setup or attempt to boot from a connected storage device.

6.2. BIOS/UEFI-opstelling

Om die BIOS/UEFI-opstelling te betree, druk die DEL key repeatedly during the boot process when the GIGABYTE logo appears. Here you can configure system settings, boot order, and monitor hardware status. The GA-B150M-D3H features GIGABYTE UEFI Dual BIOS for enhanced reliability.

6.3. Bestuurder Installasie

After installing your operating system, install the necessary drivers for the motherboard components. These can be found on the included driver CD/DVD or downloaded from the official GIGABYTE website. Key drivers include chipset, audio (Realtek ALC892 codec), LAN, and any integrated graphics drivers.

6.4. Installasie van bedryfstelsel

Insert your operating system installation media (USB drive or DVD) and configure the boot order in the BIOS/UEFI to boot from it. Follow the on-screen instructions to install your preferred operating system (e.g., Windows 8.1, Windows 10).

7. Onderhoud

7.1. Skoonmaak

Regularly clean the interior of your computer case to prevent dust buildup, which can lead to overheating. Use compressed air to remove dust from fans, heatsinks, and motherboard components. Ensure the system is powered off and unplugged before cleaning.

7.2. BIOS-opdaterings

GIGABYTE periodically releases BIOS updates to improve system stability, compatibility, and performance. Visit the official GIGABYTE website for your motherboard model (GA-B150M-D3H) to check for the latest BIOS version and follow the provided instructions for updating. Exercise caution during BIOS updates, as an interruption can render the motherboard inoperable.

8. Probleemoplossing

Hierdie afdeling spreek algemene probleme aan wat jy mag teëkom.

8.1. Geen krag / Stelsel skakel nie aan nie

• Check if the power supply is connected correctly to the motherboard (24-pin and 8-pin connectors).
• Maak seker dat die kragtoevoerskakelaar in die AAN-posisie is.
• Verify that the front panel power button cable is correctly connected to the motherboard header.
• Toets die kragtoevoer met 'n ander stelsel of 'n kragtoevoertoetser.

8.2. Geen skermuitvoer nie

• Ensure the monitor is connected to the correct graphics output (either integrated graphics on the motherboard or a dedicated graphics card).
• Plaas die grafiese kaart en geheuemodules terug.
• Try booting with only one memory module installed.
• Check if the monitor is powered on and set to the correct input source.

8.3. Stelselonstabiliteit / Ineenstortings

• Kontroleer die SVE- en GPU-temperature om te verseker dat hulle binne veilige bedryfslimiete is.
• Verify that all drivers are installed and up to date.
• Voer geheuediagnostiese gereedskap uit om te kyk vir foutiewe RAM.
• Ensure the power supply provides sufficient and stable power to all components.

9. Spesifikasies

Detailed technical specifications for the GIGABYTE GA-B150M-D3H motherboard:

10. Waarborg en Ondersteuning

For warranty information, please refer to the warranty card included in your product package or visit the official GIGABYTE webwebwerf. Waarborgbepalings en -voorwaardes kan per streek verskil.

For technical support, driver downloads, BIOS updates, and further product information, please visit the GIGABYTE official support webwebwerf:

https://www.gigabyte.com/Support

When contacting support, please have your motherboard model (GA-B150M-D3H) and serial number ready.
