Holzmann ED 1000GDIG Metal Lathe Instruction Manual

1. Inleiding

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your Holzmann ED 1000GDIG metal lathe. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.

The Holzmann ED 1000GDIG is a versatile and durable lead and feed screw lathe, suitable for use in toolmaking, production, and training environments. It features an oversized spindle bore and an electromagnetic foot brake for enhanced safety and efficiency.

2. Veiligheidsinstruksies

Always prioritize safety when operating machinery. Failure to follow safety guidelines can result in serious injury or damage to the equipment.

• Dra gepaste persoonlike beskermende toerusting (PPE), insluitend veiligheidsbril, gehoorbeskerming en geskikte klere.
• Maak seker dat die masjien behoorlik geaard is en aan 'n 400V-kragtoevoer gekoppel is.
• Keep the work area clean and well-lit. Remove any clutter that could cause tripping hazards.
• Moet nooit die masjien onder die invloed van dwelms of alkohol gebruik nie.
• Moenie los klere, juweliersware of lang hare dra wat in bewegende dele kan vashaak nie.
• Always ensure the electromagnetic foot brake is functional and used for immediate spindle stops.
• Before making adjustments or maintenance, always turn off the machine and disconnect it from the power source.
• Gebruik slegs aanbevole bykomstighede en aanhegsels.
• Keep hands clear of moving parts, especially the chuck and cutting tools.

3. Opstelling en installering

Proper installation is crucial for the stability and performance of the lathe.

3.1 Uitpak en plasing

• Carefully unpack the machine and all accessories. Retain packaging for future transport if needed.
• Place the lathe on a stable, level surface capable of supporting its weight (Net weight: 630 kg).
• Verseker voldoende speling rondom die masjien vir veilige werking en onderhoud.

3.2 Elektriese aansluiting

• Connect the machine to a 400V power supply. Ensure the electrical installation meets local regulations.
• Verify proper grounding to prevent electrical shock.

3.3 Aanvanklike inspeksie

• Check all moving parts for freedom of movement.
• Maak seker dat alle boute en bevestigingsmiddels stewig vasgedraai is.
• Lubricate all necessary points as indicated in the maintenance section.

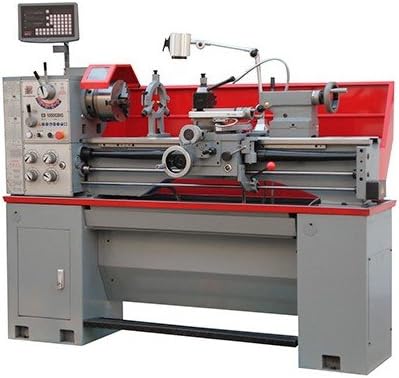

Figuur 1: verbyview of the Holzmann ED 1000GDIG Metal Lathe. This image shows the complete machine, highlighting its robust construction and various operational components, including the headstock, tailstock, carriage, and control panel.

4. Bedryfsinstruksies

This section details the basic operation of the Holzmann ED 1000GDIG lathe.

4.1 Krag aan/af

• To power on, engage the main power switch.
• To power off, disengage the main power switch. In emergencies, use the electromagnetic foot brake for immediate spindle stop.

4.2 Spilspoedverstelling

The spindle speed can be adjusted quickly and easily via the gearbox. The available speed range is 70-1900 revolutions per minute (min-1).

• Refer to the speed chart on the machine for appropriate settings based on material and tool.
• Adjust the gear levers to select the desired speed range.

4.3 Klauwplaatbediening

The lathe comes with a 3-jaw chuck (200 mm) and a 4-jaw faceplate (200 mm) with reversible jaws.

• Securely mount the workpiece in the chuck. Ensure it is centered and clamped tightly to prevent it from coming loose during operation.
• Use the chuck guard for safety.

4.4 Draadsny

The machine supports 32 metric thread pitches (0.45-10 mm) and 20 inch thread pitches (2.25-40 gg/1 inch).

• Consult the thread cutting chart on the machine for correct gear settings.
• Install the appropriate change gears from the provided set.

4.5 Verstelling van die agterste kop

The tailstock can be offset by +/- 5 mm for taper turning.

• Loosen the tailstock clampboute.
• Adjust the tailstock to the desired offset using the adjustment screw.
• Draai die cl weer vasamping bolts securely before operation.

5. Onderhoud

Gereelde onderhoud verseker die lang lewensduur en optimale werkverrigting van u draaibank.

5.1 Skoonmaak

• After each use, clean chips and debris from the machine bed, carriage, and chuck.
• Use a brush or vacuum cleaner; never use compressed air as it can embed chips into moving parts.

5.2 Smering

• Regularly lubricate all sliding surfaces, lead screws, and gears with appropriate machine oil.
• Check the oil level in the gearbox and headstock, replenishing as needed.

5.3 Inspeksie

• Periodically inspect all belts, cables, and electrical connections for wear or damage.
• Check the condition of the chuck jaws and replace if worn.
• Ensure the electromagnetic foot brake is functioning correctly.

6. Probleemoplossing

Hierdie afdeling bied oplossings vir algemene operasionele probleme.

7. Tegniese spesifikasies

8. Waarborg en Ondersteuning

For warranty information, please refer to the documentation provided with your purchase or contact your authorized Holzmann dealer. For technical support, spare parts, or service inquiries, please contact Holzmann customer service or your local distributor.

Note: Software updates are unknown.
