Whirlpool WT-2211D Refrigerator User Manual

Inleiding

This manual provides essential instructions for the installation, operation, and maintenance of your Whirlpool WT-2211D refrigerator. Please read this manual thoroughly before using the appliance to ensure safe and efficient operation. Keep this manual for future reference.

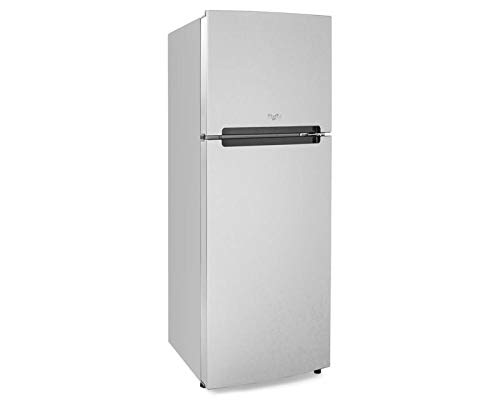

Beeld wat die voorkant wys view of the Whirlpool WT-2211D refrigerator, a top-freezer model.

1. Opstelling en installering

1.1 Uitpak

• Verwyder alle verpakkingsmateriaal, insluitend kleefband en beskermende films.
• Dispose of packaging materials responsibly. Keep plastic bags away from children.

1.2 Liggingvereistes

• Plaas die yskas op 'n stewige, gelyk vloer wat die gewig daarvan kan dra.
• Allow at least 10 cm (4 inches) of space behind the refrigerator and 5 cm (2 inches) on the sides and top for proper air circulation.
• Avoid direct sunlight and proximity to heat sources such as stoves, ovens, or radiators.
• Ensure the ambient temperature is between 10°C (50°F) and 43°C (110°F) for optimal performance.

1.3 Elektriese aansluiting

• Connect the refrigerator to a dedicated, grounded 120V, 60Hz AC outlet.
• Moenie verlengkoorde of adapterproppe gebruik nie.
• Ensure the electrical circuit is protected by a fuse or circuit breaker.

1.4 Aanvanklike skoonmaak

• Before first use, clean the interior and exterior surfaces with a mild detergent and warm water. Rinse thoroughly and dry.

2. Bedryfsinstruksies

2.1 Temperature Control System

The Whirlpool WT-2211D features a dual temperature control system, allowing independent adjustment of the refrigerator and freezer compartments.

• Yskasbeheer: Located inside the fresh food compartment. Adjust to a setting between "Min" (warmer) and "Max" (colder). A mid-range setting is typically recommended for general use.
• Vriesbeheer: Located inside the freezer compartment. Adjust to a setting between "Min" (warmer) and "Max" (colder). For optimal freezing, set to a colder position.
• Allow several hours for the refrigerator to reach desired temperatures after initial setup or adjustment.

2.2 Riglyne vir voedselberging

• Vars kos kompartement: Store fruits, vegetables, dairy products, and cooked foods. Use drawers for produce and shelves for other items.
• Vrieskas kompartement: Bêre bevrore kosse. Maak seker dat die verpakking verseël is om te verhoed dat dit in die vrieskas brand.
• Moenie die yskas oorlaai nie, aangesien dit lugsirkulasie en verkoelingsdoeltreffendheid kan belemmer.

2.3 Energiebesparingswenke

• Vermy die oopmaak van die deure gereeld of vir lang tye.
• Laat warm kos tot kamertemperatuur afkoel voordat u dit in die yskas plaas.
• Ensure door seals are clean and free of obstructions to maintain a tight seal.

3. Onderhoud en versorging

3.1 Skoonmaak van die binnekant

• Ontkoppel die yskas voordat dit skoongemaak word.
• Wash interior surfaces, shelves, and drawers with a solution of mild soap and warm water.
• Spoel met skoon water en droog deeglik.
• Moenie skuurmiddels, skuursponse of harde chemikalieë gebruik nie.

3.2 Skoonmaak van die buitekant

• Maak die buitekant skoon met 'n sagte lap dampafgesluit met sagte seep en water.
• Wipe door gaskets with a clean cloth to ensure a proper seal.

3.3 Skoonmaak van die kondensorspoel

• Periodically clean the condenser coils located at the back or bottom of the refrigerator.
• Use a vacuum cleaner with a brush attachment to remove dust and debris. This improves efficiency.

3.4 Vakansie- en Verhuissorg

• Kort vakansies: Laat die yskas aan die gang.
• Lang vakansies: Unplug the refrigerator, empty all food, clean thoroughly, and leave doors ajar to prevent odors and mold.
• Beweeg: Secure all loose items inside, tape doors shut, and transport in an upright position.

4. Probleemoplossingsgids

Voordat u diens kontak, hersienview die volgende algemene probleme en oplossings:

5. Produkspesifikasies

6. Waarborg en Ondersteuning

For detailed warranty information, please refer to the separate warranty card included with your product or visit the official Whirlpool website. For technical support or service inquiries, please contact Whirlpool customer service.
