The Blackburn EX-1 Disc Rear Rack is designed for mounting on the rear of bicycles, providing a sturdy platform for carrying cargo. It features an aluminum construction, making it lightweight yet strong, and is specifically designed to accommodate bicycles with disc brakes. This rack is compatible with both 700c and 26-inch wheels and can support a load capacity of up to 40 pounds.
This manual provides instructions for the proper installation, operation, and maintenance of your Blackburn EX-1 Disc Rear Rack to ensure safe and efficient use.
Veiligheidsinligting
- Always ensure all bolts are securely tightened before each ride.
- Moenie die maksimum laaikapasiteit van 40 pond (18 kg) oorskry nie.
- Verdeel die gewig eweredig op die fietsrak om die balans te handhaaf.
- Regularly inspect the rack for any signs of damage or wear. Replace damaged parts immediately.
- Be aware that adding weight to the rear of your bicycle can affect handling and braking. Practice riding with a loaded rack in a safe environment before extended use.
Opstelling en installasie
Proper installation is crucial for the safety and performance of your rear rack. Follow these steps carefully.
Gereedskap benodig:
- Hex key set (typically 4mm, 5mm, 6mm)
- Adjustable wrench or open-end wrench set
- Measuring tape (optional, for strut adjustment)
Installasie stappe:
- Heg onderste monterings aan: Secure the lower legs of the rack to the eyelets near the rear axle of your bicycle frame. Use the provided bolts and washers. Ensure the rack is centered over the wheel. For disc brake clearance, the rack is designed to clear the caliper.
- Posisie Rak: Hold the rack in its desired position, ensuring it is level and provides adequate clearance for the rear wheel and tire.
- Attach Upper Struts: Connect the adjustable upper struts from the rack to the seat stay eyelets on your bicycle frame. If your frame lacks seat stay eyelets, P-clamps (not included, may be required) can be used to attach the struts to the seat stays. Adjust the length of the struts to achieve a level rack platform.
- Draai alle hegstukke vas: Once the rack is properly aligned and level, securely tighten all bolts. Do not overtighten, but ensure they are firm.
- Finale kontrole: Gently shake the rack to ensure it is stable and does not wobble. Re-check all connections.
Bedryfsinstruksies
Once installed, the Blackburn EX-1 Disc Rear Rack is ready for use. Follow these guidelines for optimal performance and safety.
- Laai vrag: Place items on the rack platform or attach panniers to the side rails. Ensure cargo is securely fastened using bungee cords, straps, or pannier hooks to prevent shifting during transit.
- Gewig verspreiding: Distribute the weight as evenly as possible, with heavier items placed lower and closer to the center of the rack. This helps maintain bicycle stability.
- Sigbaarheid: Ensure that loaded cargo does not obstruct your bicycle's rear light or reflectors. If necessary, attach additional lights or reflectors to the rack or cargo.
- Opruiming: Verify that cargo does not interfere with the rear wheel, brakes, or your pedaling motion.
Onderhoud
Regular maintenance will extend the life of your Blackburn EX-1 Disc Rear Rack and ensure continued safe operation.
- Inspekteer Bevestigingsmiddels: Periodically check all bolts and screws for tightness. Vibrations from riding can cause fasteners to loosen over time.
- Clean Rack: Maak die rek skoon met adamp cloth and mild soap as needed. Avoid harsh chemicals that could damage the finish.
- Kontroleer vir skade: Inspect the aluminum frame for cracks, bends, or other signs of structural damage, especially after impacts or heavy use.
- Voorkoming van korrosie: If riding in wet or corrosive conditions, wipe down the rack after use to prevent corrosion, particularly around fasteners.
Probleemoplossing
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Rack is wobbly or loose. | Los monteerboute. | Tighten all mounting bolts securely. |
| Rack is not level. | Upper struts are unevenly adjusted. | Adjust the length of the upper struts until the rack platform is level. |
| Cargo interferes with wheel or brakes. | Improper cargo placement or oversized cargo. | Reposition cargo, ensure proper clearance, or use smaller bags/items. |
| Rack does not fit bicycle frame. | Incompatible frame design or missing eyelets. | Verify frame compatibility. P-clamps may be required for frames without seat stay eyelets (not included). Consult a bike mechanic if unsure. |
Spesifikasies
- Model: EX-1 Disc Rear Rack
- Materiaal: T6061 Aluminum
- Kleur: Swart
- Montage tipe: Agterste sitplekbevestiging
- Laai kapasiteit: 40 pond (18 kg)
- Item gewig: 1.6 pond (0.73 kg)
- Wielgrootte verenigbaarheid: 26 inches, 700c (also fits 29er)

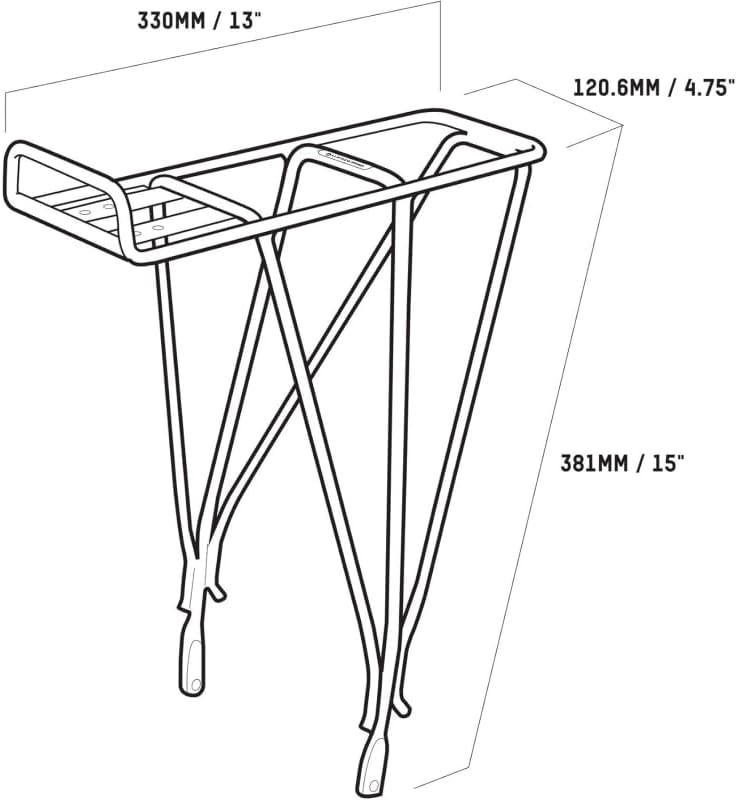

- Afmetings: Approximately 330mm (13") Length x 120.6mm (4.75") Width x 381mm (15") Height (refer to Figure 3 for detailed dimensions)
- Ingesluit komponente: Rear Rack (mounting hardware included)
- Vervaardiger deelnommer: 2027629
- UPC: 768686827433
Waarborg inligting
The Blackburn EX-1 Disc Rear Rack is subject to a limited lifetime warranty for the lifetime of the original purchaser. This warranty covers manufacturing defects in materials and workmanship.
Uitsluitings: This warranty does not apply to damage due to heat, physical damage resulting from abuse, neglect, improper repair, improper fit, improper installation, improper care, accidents, failure to follow directions, alterations, misuse, or use unintended by the manufacturer. It also does not cover minor cosmetic damages due to normal "wear and tear" of the product.
For warranty claims or further details, please contact Blackburn customer support.
Kliënte ondersteuning
If you have any questions, require assistance with installation, or need to report a problem, please contact Blackburn customer support through their official webwebwerf of die kleinhandelaar waar die produk gekoop is.
For more information, visit the official Blackburn webwebwerf: www.blackburndesign.com
