SKMEI Analogue-Digital Watch Model 1035 User Manual

Produk verbyview

This manual provides instructions for the SKMEI Analogue-Digital Watch Model 1035. This timepiece combines traditional analog display with modern digital functions, including a chronograph, alarm, and dual time capabilities. It is designed for durability with a silicone band and 50-meter water resistance.

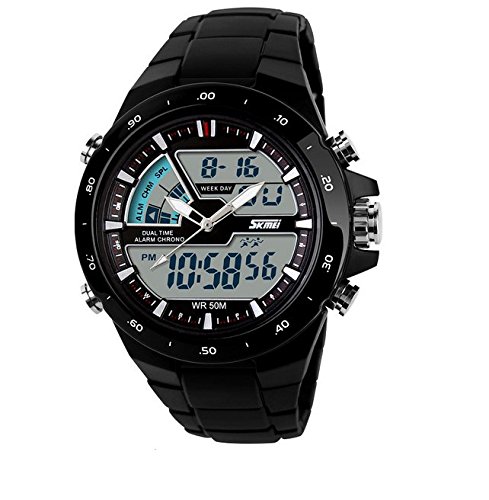

This image displays the SKMEI Analogue-Digital Watch Model 1035. The watch features a black dial with both analog hands and digital displays. Visible elements include the current time, day of the week, and indicators for dual time, alarm, and chronograph functions. The watch has a black silicone band and multiple control buttons on the side for function adjustments.

Opstelling en aanvanklike konfigurasie

Before using your watch, it is recommended to set the correct time and date.

Stel analoog tyd in

1. Pull out the crown (the knob on the right side of the watch) to the first position.
2. Draai die kroon om die analoog wysers na die verlangde tyd te verstel.
3. Push the crown back in to its original position to start the analog movement.

Stel digitale tyd en datum in

The watch typically has four buttons: A (top-left), B (bottom-left), C (top-right), D (bottom-right).

1. In normal time display mode, press button B repeatedly to cycle through modes: Time, Alarm, Chronograph, Dual Time.
2. To set the digital time, navigate to the Time mode. Press and hold button A totdat die sekondes begin flikker.
3. Druk knoppie B to select the item to adjust (seconds, hour, minute, month, date, day of week).
4. Druk knoppie D to increase the value or button C to decrease (if applicable).
5. Once all settings are adjusted, press button A om die instellingsmodus te verlaat.

Bedryfsmodusse

Chronograaf (stophorlosie)

1. From normal time mode, press button B until "CHRON" or "STW" appears on the digital display.
2. Druk knoppie D om die stophorlosie te begin.
3. Druk knoppie D weer om die stophorlosie te onderbreek.
4. Druk knoppie C to reset the stopwatch to zero while paused.
5. To record split times, press button C terwyl die stophorlosie loop. Druk C again to release the split and resume normal timing.

Alarm funksie

1. From normal time mode, press button B totdat "ALARM" of "AL" verskyn.
2. Druk en hou knoppie A totdat die alarmuur flikker.
3. Druk knoppie B to select hour or minute.
4. Druk knoppie D to adjust the hour or minute.
5. Druk knoppie A om alarminstelling te bevestig en te verlaat.
6. To turn the alarm ON/OFF, press button D while in alarm mode (not setting mode). An alarm icon will appear/disappear.

Dubbele tydfunksie

1. From normal time mode, press button B until "DUAL TIME" or "DT" appears.
2. Druk en hou knoppie A totdat die uur flikker.
3. Druk knoppie B to select hour or minute.
4. Druk knoppie D to adjust the hour or minute for the second time zone.
5. Druk knoppie A om dubbele tydinstelling te bevestig en te verlaat.

Agterlig

Druk knoppie C (usually top-right) to activate the backlight for a few seconds, illuminating the digital display for visibility in low light conditions.

Onderhoud

• Skoonmaak: Wipe the watch case and band regularly with a soft, dry cloth. For silicone bands, a damp 'n Lap met sagte seep kan gebruik word, spoel dit dan af en droog deeglik af.
• Waterbestandheid (WR 50M): This watch is water resistant up to 50 meters. It is suitable for short periods of recreational swimming, but not for diving or snorkeling. Do not operate buttons underwater.
• Battery: The watch uses a button cell battery. When the display becomes dim or functions are erratic, it may be time for a battery replacement. It is recommended to have this done by a professional watch repair service to ensure proper sealing and water resistance.
• Berging: Bêre jou horlosie op 'n koel, droë plek weg van direkte sonlig en uiterste temperature.

Probleemoplossing

Spesifikasies

• Handelsmerk: SKMEI
• Model: 1035
• Beweging tipe: Kwarts
• Band Materiaal Tipe: Silikoon
• Band Kleur: Swart
• Dialkleur: Swart
• Waterweerstand: 50 Meters (WR 50M)
• Item gewig: 70 gram

Waarborg en Ondersteuning

This SKMEI watch comes with a manufacturer's warranty. For specific details regarding the warranty period and coverage, please refer to the warranty card included with your purchase or contact SKMEI customer support directly.

For technical assistance or further inquiries, please visit the official SKMEI webwebwerf of kontak hul kliëntediensafdeling. Bewaar u aankoopbewys as bewys van aankoop vir enige waarborgeise.
