Zhongyi M42-FX Lens Turbo Adapter II Mark 2 Instruction Manual

1. Inleiding

The Zhongyi M42-FX Lens Turbo Adapter II Mark 2 is designed to allow M42 screw mount lenses to be used on APS-C format Fuji X (FX) cameras. This adapter features advanced optical elements that condense light from the full-frame lens, projecting it onto the camera's sensor. This process effectively negates the crop factor, providing a wider angle of view (approximately 0.726x magnification) and increasing the maximum aperture of the lens by 1 f-stop, enhancing low-light performance.

The adapter is constructed from sturdy metal with stainless steel mounts, ensuring a secure connection between your lens and camera. It operates as a manual adapter, meaning there is no electronic communication between the lens and the camera body.

2. Veiligheidsinligting

• Handle the adapter with care to prevent damage from drops or impacts.
• Keep the adapter away from water and excessive moisture.
• Do not attempt to disassemble the adapter. Disassembly will void any warranty and may damage the optical elements.
• Avoid looking directly at the sun or other intense light sources through the adapter and attached lens, as this can cause permanent eye damage.
• Store the adapter in a clean, dry, and dust-free environment when not in use.

3. Pakketinhoud

Verifieer asseblief dat alle items in u pakket teenwoordig is:

• Zhongyi M42-FX Lens Turbo Adapter II Mark 2
• Voorste lensdop
• Lensdop agter

4. Opstelling

4.1 Attaching the Adapter to Your Camera

1. Maak seker jou kamera is afgeskakel.
2. Remove the body cap from your Fuji X camera and the rear cap from the M42-FX adapter.
3. Align the red dot on the adapter with the white dot (or corresponding alignment mark) on your Fuji X camera's lens mount.
4. Plaas die adapter in die kameramontering en draai dit kloksgewys totdat dit stewig in plek klik. Moenie dit forseer nie.

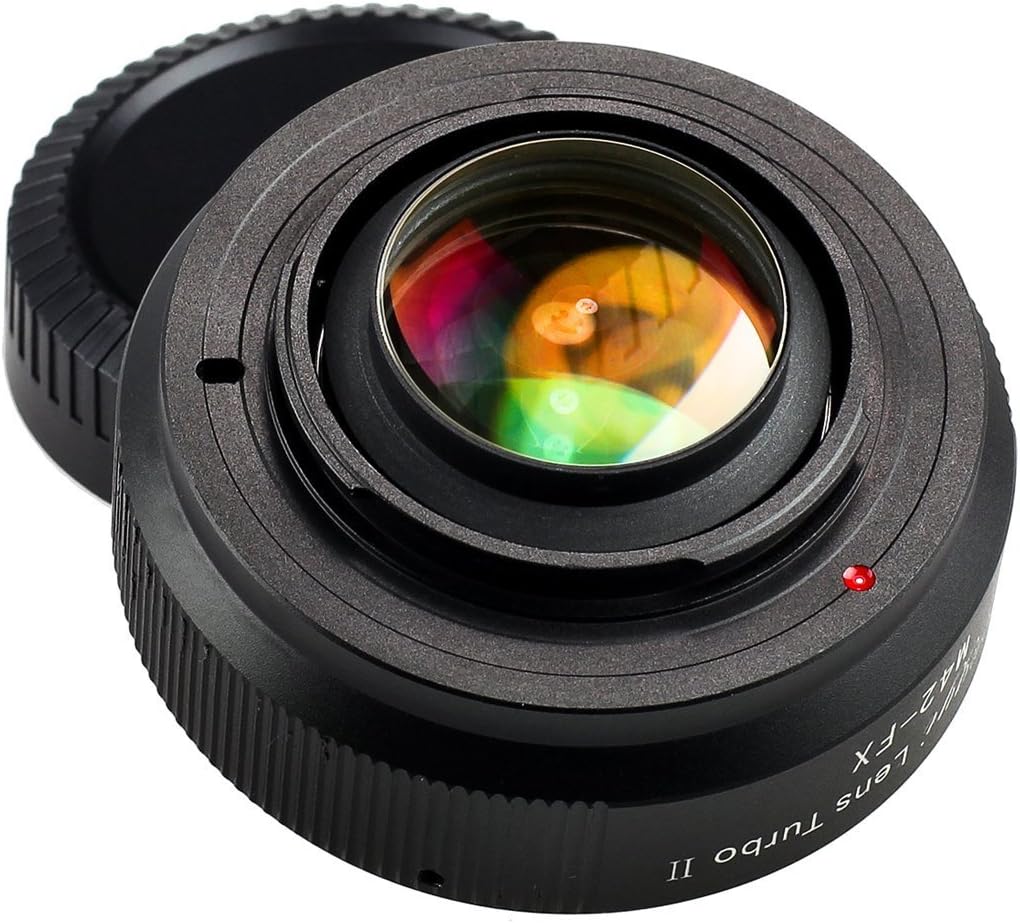

Figuur 1: Agter view of the Zhongyi M42-FX Lens Turbo Adapter II Mark 2, showing the camera mount side.

4.2 Attaching an M42 Lens to the Adapter

1. Remove the front cap from the M42-FX adapter.
2. Carefully align the M42 screw mount lens with the threads on the adapter.
3. Gently screw the lens clockwise onto the adapter until it is firmly seated. Avoid overtightening.

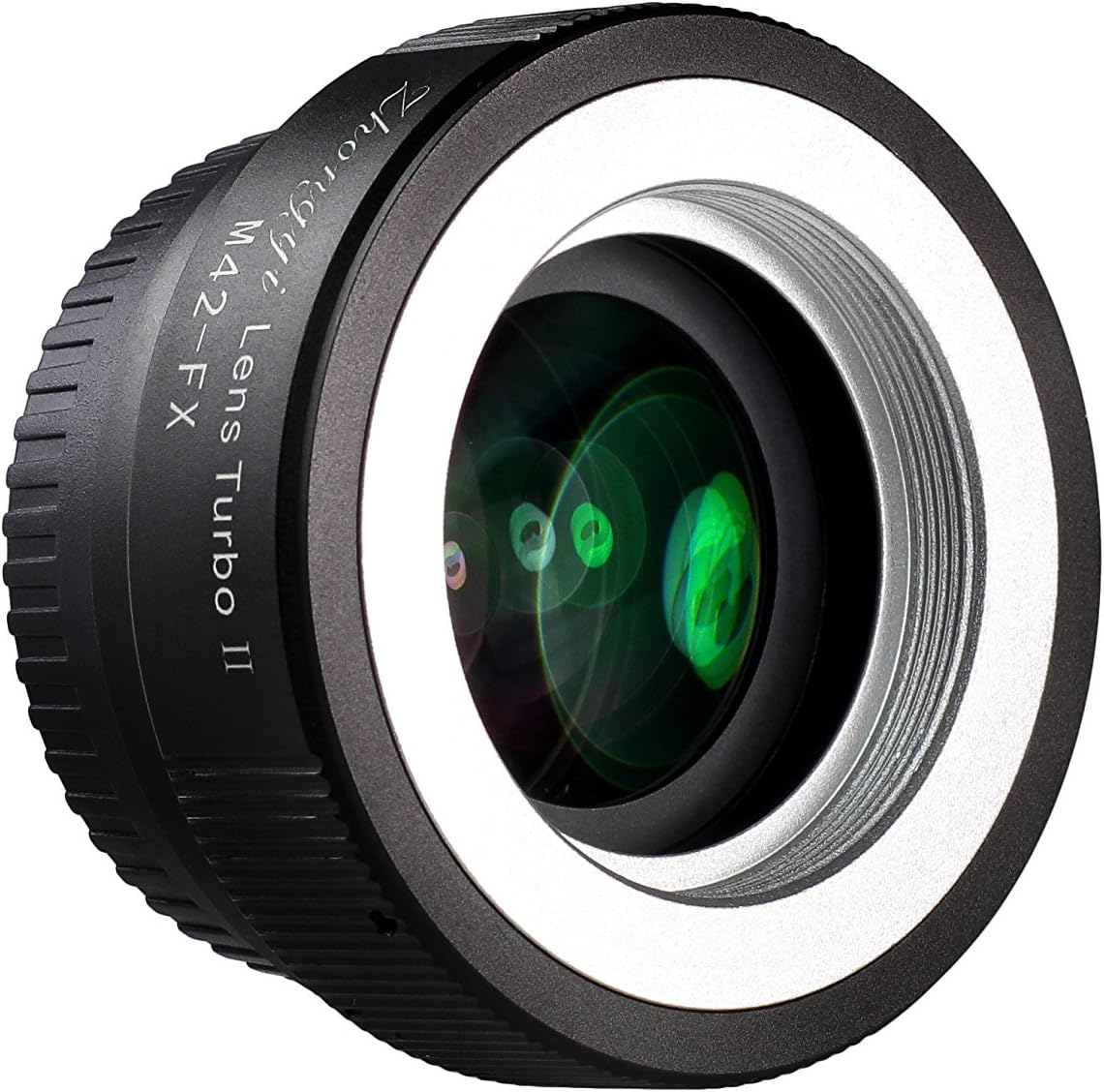

Figuur 2: Voorkant view of the Zhongyi M42-FX Lens Turbo Adapter II Mark 2, illustrating the M42 screw mount.

5. Bedryfsinstruksies

5.1 Kamera-instellings

Since this is a manual adapter with no electronic contacts, your camera will not detect an attached lens. To enable shooting, you must adjust your camera settings:

• Navigate to your camera's menu.
• Find the option typically labeled "Shoot Without Lens" or "Release Shutter Without Lens" and set it to ON or AKTIVEER.

5.2 Fokus

Focusing will be entirely manual. Use the focus ring on your M42 lens to achieve sharp focus. Your camera's focus peaking or magnification assist features can be helpful for precise manual focusing.

5.3 Diafragmabeheer

Aperture control is also manual. Adjust the aperture ring on your M42 lens to set the desired f-stop. The adapter increases the effective maximum aperture by 1 stop, meaning an f/2.8 lens will behave like an f/2.0 lens in terms of light gathering.

5.4 Blootstelling

Exposure must be set manually or using aperture-priority (Av/A) mode on your camera. In aperture-priority mode, the camera will automatically select the shutter speed based on the light meter reading and your chosen aperture. Due to the adapter's light-gathering capabilities, you may need to adjust exposure compensation or use a faster shutter speed than you would with a standard adapter.

5.5 Veld van View

The adapter provides an angle of view magnification of approximately 0.726x. This means a 50mm full-frame lens, when used with this adapter on an APS-C Fuji X camera, will have a field of view roughly equivalent to a 50mm lens on a full-frame camera (50mm * 1.5 crop factor * 0.726 adapter factor ≈ 54.45mm equivalent).

6. Onderhoud

6.1 Cleaning the Adapter Body

Use a soft, dry, lint-free cloth to wipe the exterior of the adapter. For stubborn dirt, a slightly damp lap kan gebruik word, gevolg deur onmiddellike droogmaak.

6.2 Cleaning the Optical Elements

The optical elements inside the adapter are delicate. Use a lens blower brush to remove dust. For smudges or fingerprints, use a specialized lens cleaning solution and a microfiber lens cloth. Apply the solution to the cloth, not directly to the lens surface, and wipe gently in a circular motion.

Figure 3: Internal optical elements of the adapter, requiring careful cleaning.

6.3 Berging

Always attach both the front and rear lens caps when the adapter is not in use. Store the adapter in its original packaging or a protective pouch in a cool, dry, and dust-free environment. Avoid areas with extreme temperature fluctuations or high humidity.

Figure 4: Adapter with protective caps for storage.

7. Probleemoplossing

• Probleem: Lens does not attach securely to the adapter.
  Oplossing: Ensure the lens is an M42 screw mount type and that the threads are clean and undamaged. Align carefully before screwing. Some M42 lenses may have rear protrusions that interfere with the adapter; check for physical obstructions.
• Probleem: Adapter does not attach securely to the camera.
  Oplossing: Ensure the camera is a Fuji X (FX) mount. Align the red dot on the adapter with the camera's white dot and rotate clockwise until it clicks. Do not force the connection.
• Probleem: Camera does not take pictures or displays an error message.
  Oplossing: Verify that the "Shoot Without Lens" or "Release Shutter Without Lens" option is enabled in your camera's menu.
• Probleem: Image quality is soft or exhibits aberrations.
  Oplossing: While the adapter is designed for optical quality, adding additional glass can sometimes affect sharpness, especially at wide apertures. Try stopping down your lens by one or two stops. Ensure both the lens and adapter optics are clean.
• Probleem: Vignetting or dark corners in images.
  Oplossing: This can occur with certain lens combinations or at very wide apertures. It is generally less common with speed boosters designed to reduce the image circle. Ensure the lens is fully seated and clean.

8. Spesifikasies

9. Waarborg en Ondersteuning

For information regarding warranty coverage, technical support, or service, please refer to the official Zhongyi Optics website or contact the retailer from whom you purchased this product. Keep your proof of purchase for warranty claims.
