Inleiding
This manual provides essential information for the safe and correct installation, operation, and maintenance of your Ideal Standard Wall-Mounted Washbasin Mixer, Model A5933AA. Please read these instructions thoroughly before beginning installation or use, and retain them for future reference. This product is designed for use with standard domestic water supply systems.
Veiligheidsinligting
- Skakel altyd die hoofwatertoevoer af voordat u enige installasie of onderhoud probeer.
- Maak seker dat alle verbindings stewig is om lekkasies te voorkom.
- Indien u onseker is oor enige deel van die installasieproses, raadpleeg 'n gekwalifiseerde loodgieter.
- Moenie skuurmiddels of harde chemikalieë op die kraan se afwerking gebruik nie, aangesien dit skade kan veroorsaak.
Pakketinhoud
Verifieer dat alle komponente teenwoordig is voordat u met die installasie begin:
- Wall-mounted washbasin mixer unit (Model A5933AA)
- Mounting hardware (screws, anchors, gaskets)
- Installasie-instruksies (hierdie handleiding)
If any parts are missing or damaged, do not proceed with installation. Contact Ideal Standard customer support.
Opstelling en installasie
Hierdie afdeling beskryf die stappe vir die installering van jou muurgemonteerde wasbak.asin menger. Professionele installasie word aanbeveel.
- Berei die installasie area voor: Ensure the wall is structurally sound and capable of supporting the faucet. Confirm that hot and cold water supply lines are correctly positioned and accessible. The recommended rough-in dimensions for the water connections (G1/2) and the spout reach are critical for proper function and aesthetics. Refer to the technical drawing for precise measurements, including the 204 mm spout reach and the 132.8 mm center-to-center distance for the wall mounts.
- Sluit watertoevoer af: Locate the main water shut-off valve for your property and turn it off completely. Open nearby faucets to drain any remaining water from the pipes.
- Install the Rough-in Body (if applicable): If your mixer includes a separate rough-in body, install it according to its specific instructions, ensuring it is level and securely fastened within the wall. The G1/2 connections should be correctly oriented.
- Verbind waterlyne: Connect the hot and cold water supply lines to the corresponding inlets on the mixer. Use appropriate plumbing tape or sealant on threaded connections to ensure a watertight seal. The technical drawing indicates G1/2 connections.
- Monteer die kraanliggaam: Secure the faucet body to the wall using the provided mounting hardware. Ensure it is level and firmly attached. The design features a single lever for operation.
- Toets vir lekkasies: Slowly turn the main water supply back on. Carefully inspect all connections for any signs of leaks. If leaks are detected, shut off the water supply, tighten the connections, and re-test.

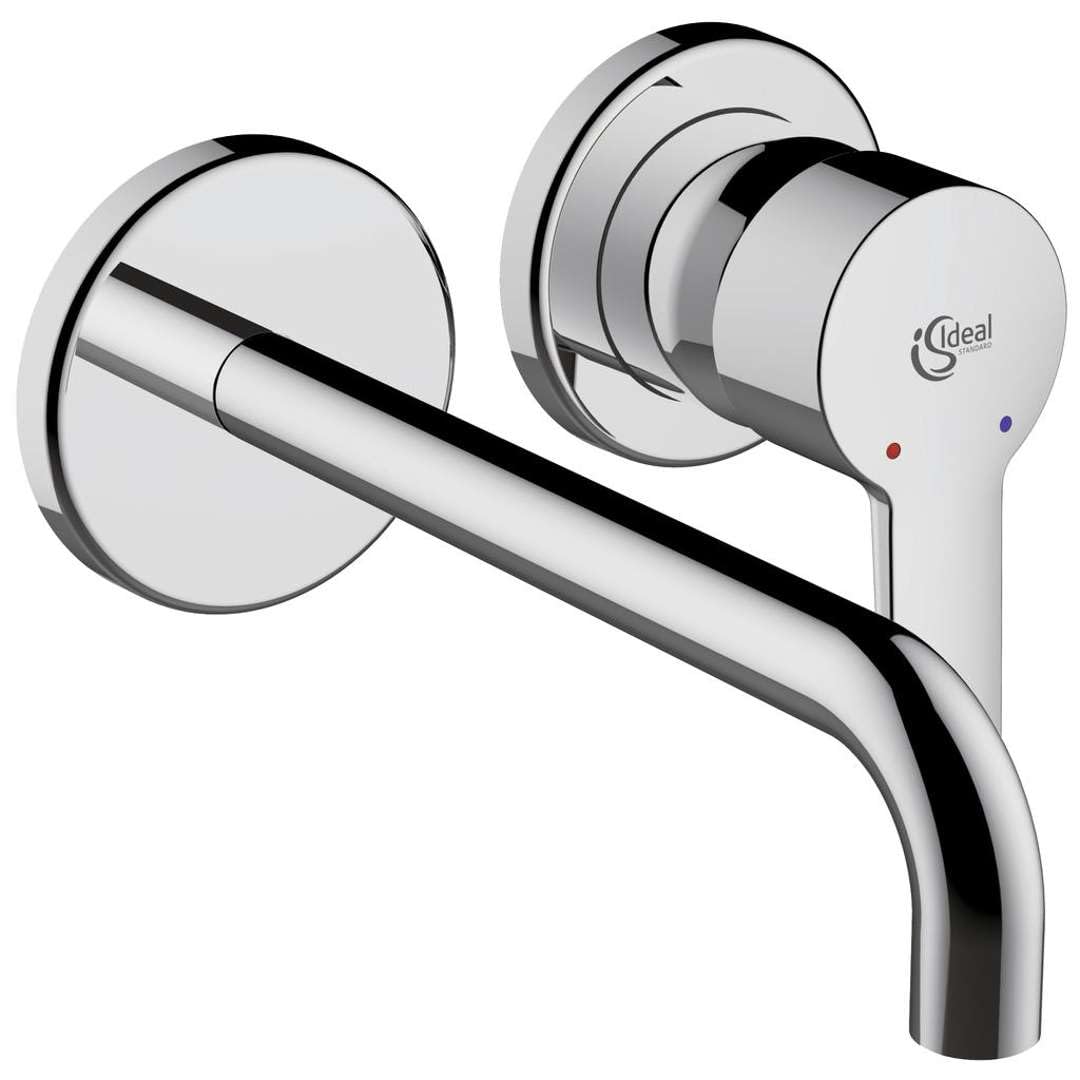

Produk verbyview Prent:
This image shows the Ideal Standard Wall-Mounted Washbasin Mixer A5933AA in a polished chrome finish, illustrating its design and wall-mounted configuration. Note the single lever handle and the extended spout.
Bedryfsinstruksies
The Ideal Standard Wall-Mounted Washbasin Mixer A5933AA features a single lever for controlling both water flow and temperature.
- Om aan/af te skakel: Lift the lever upwards to turn on the water. Push the lever downwards to turn off the water.
- Om watervloei aan te pas: The further you lift the lever, the greater the water flow.
- Om die watertemperatuur aan te pas: Move the lever to the left for hotter water and to the right for colder water. The center position typically provides mixed water.
Onderhoud
Regular cleaning and proper care will ensure the longevity and appearance of your Ideal Standard washbasin menger.
- Skoonmaak van die afwerking: Maak die kraan gereeld skoon met 'n sagte lap en sagte seep en water. Spoel deeglik af met skoon water en droog af met 'n sagte lap om waterkolle te voorkom.
- Vermy harde skoonmaakmiddels: Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, bleach, or other harsh chemicals, as these can damage the chrome finish.
- Onderhoud van belugter: If water flow becomes restricted, the aerator at the end of the spout may be clogged. Unscrew the aerator, clean any debris, and rinse it before reattaching.
Probleemoplossing
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Lae Watervloei | Verstopte belugter; gedeeltelik toe afsluitklep; puin in toevoerlyn. | Maak belugter skoon; maak seker dat afsluitkleppe heeltemal oop is; spoel toevoerlyne. |
| Lek uit tuit | Verslete patroon; puin in patroon. | Replace cartridge; clean cartridge. (Consult a professional). |
| Lekkasie by verbindings | Loose connections; worn gaskets. | Tighten connections; replace gaskets. (Ensure water supply is off). |
| Watertemperatuur pas nie aan nie | Faulty cartridge; issues with hot/cold supply. | Replace cartridge; check hot/cold water supply to the faucet. |
For issues not listed or if troubleshooting steps do not resolve the problem, contact Ideal Standard customer support or a qualified plumber.
Spesifikasies
The following table details the key specifications for the Ideal Standard Wall-Mounted Washbasin Mixer A5933AA:
| Kenmerk | Detail |
|---|---|
| Handelsmerk | Ideale standaard |
| Modelnommer | A5933AA |
| Montage tipe | Muurmontering |
| Voltooi Tipe | Gepoleerde Chrome |
| Materiaal | Metaal |
| Aantal handvatsels | 1 |
| Tipe handvatsel | Hefboom |
| Installasie tipe | Single Hole (for mixer body) |
| Tuit Reik | 204 millimeter |
| Global Trade Identification Number (GTIN) | 04015413315739 |
For detailed dimensional information, refer to the technical drawing provided with your product, which illustrates measurements such as the 132.8 mm overall width of the wall plate, 83 mm diameter of the escutcheons, and the 49-66 mm adjustable depth for the G1/2 connections.
Waarborg inligting
Ideal Standard products are manufactured to high-quality standards and come with a manufacturer's warranty. The specific terms and duration of the warranty may vary by region and product type. Please refer to the warranty card included with your purchase or visit the official Ideal Standard webwebwerf vir gedetailleerde waarborginligting. Bewaar u bewys van aankoop vir enige waarborgeise.
Kliënte ondersteuning
If you require further assistance, have questions about your product, or need to report a defect, please contact Ideal Standard customer support. Contact details can typically be found on the Ideal Standard website or on the packaging of your product. When contacting support, please have your model number (A5933AA) and proof of purchase readily available.
