Virutex LB31E Belt Sander Instruction Manual

1. Inleiding

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Virutex LB31E Belt Sander. Please read these instructions carefully before using the tool and keep this manual for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your sander.

2. Algemene Veiligheidsinstruksies

Volg altyd basiese veiligheidsmaatreëls wanneer u elektriese gereedskap gebruik om die risiko van brand, elektriese skok en persoonlike besering te verminder.

• Werksarea veiligheid: Hou jou werkarea skoon en goed belig. Oorvol of donker areas nooi ongelukke uit. Moenie elektriese gereedskap in plofbare atmosfere gebruik nie, soos in die teenwoordigheid van vlambare vloeistowwe, gasse of stof.
• Elektriese veiligheid: Kraggereedskapproppe moet by die aansluiting pas. Moet nooit die prop op enige manier verander nie. Vermy liggaamskontak met geaarde oppervlaktes soos pype, verkoelers, stowe en yskaste.
• Persoonlike veiligheid: Dra altyd oogbeskerming. Gebruik stofmaskers, glyvaste veiligheidskoene, harde helms of gehoorbeskerming vir gepaste omstandighede. Trek behoorlik aan. Moenie los klere of juweliersware dra nie. Hou hare en klere weg van bewegende dele.
• Gereedskap gebruik en versorging: Moenie die kraggereedskap forseer nie. Gebruik die korrekte kraggereedskap vir u toepassing. Ontkoppel die prop van die kragbron voordat u enige aanpassings maak, bykomstighede verander of kraggereedskap bêre.
• Onderhoud: Onderhou kraggereedskap. Kontroleer of die bewegende onderdele nie in lyn gebring of gebind is nie, of die onderdele breek of enige ander toestand wat die werking van die elektriese werktuig kan beïnvloed.

3. Produk verbyview

The Virutex LB31E is a robust belt sander designed for efficient material removal and surface finishing. It operates on a standard 220/230V, 50/60Hz power supply.

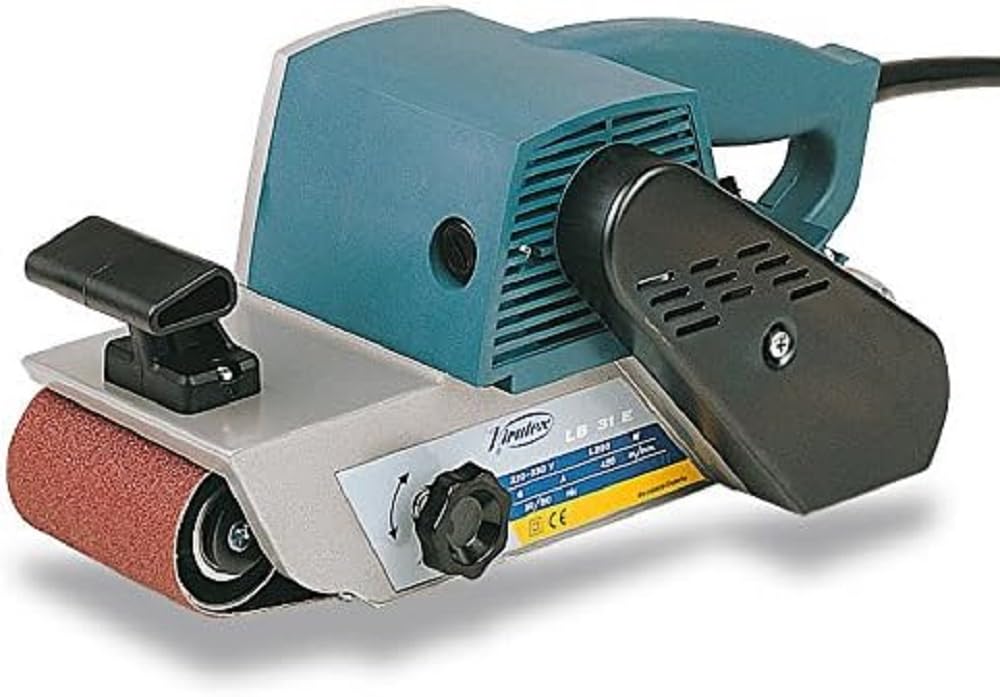

Figure 1: Virutex LB31E Belt Sander. This image shows the compact design of the sander with its main handle and sanding belt area.

Sleutelkomponente:

• Hoofhandvatsel: For gripping and guiding the tool.
• Skuurband: Die skuuroppervlak vir materiaalverwydering.
• Bandopsporingverstelling: Mechanism to keep the belt centered.
• Stofversamelpoort: For connecting a dust extraction system (if applicable).
• Krag skakelaar: To turn the tool ON/OFF.

4. Opstelling

Before initial use, ensure the sander is properly set up.

1. Uitpak: Verwyder die skuurmasjien en alle bykomstighede versigtig uit die verpakking. Inspekteer vir enige skade.
2. Installing the Sanding Belt:
   • Maak seker dat die gereedskap van die kragbron afgekoppel is.
   • Locate the belt release lever or knob.
   • Depress or turn the lever/knob to loosen the belt tension.
   • Slide the new sanding belt onto the rollers, ensuring the arrow on the belt matches the direction of rotation indicated on the tool.
   • Release the tension lever/knob to secure the belt.
3. Bandopsporingverstelling:
   • Plug in the tool briefly and turn it on to check the belt tracking.
   • If the belt drifts to one side, use the belt tracking adjustment knob (usually located on the front roller) to center the belt. Adjust until the belt runs smoothly without touching the housing.
   • Unplug the tool after adjustment.
4. Dust Collection (Optional): If using a dust extraction system, connect the hose to the dust collection port on the sander.

5. Bedryfsinstruksies

Follow these steps for safe and effective operation of your belt sander.

1. Berei die werkstuk voor: Bevestig die werkstuk stewig om beweging tydens skuur te voorkom.
2. Select the Correct Belt: Choose a sanding belt with the appropriate grit for your task (coarse for heavy material removal, fine for finishing).
3. Krag aan: Plug the sander into a suitable power outlet. Hold the sander firmly with both hands.
4. Begin die skuurmasjien: Press the power switch to turn on the tool. Allow the belt to reach full speed before contacting the workpiece.
5. Skuurtegniek:
   • Gently place the moving belt onto the workpiece.
   • Apply even, moderate pressure. Do not press too hard, as this can overload the motor and damage the belt.
   • Move the sander smoothly and continuously over the surface in the direction of the wood grain (for wood).
   • Overlap each pass slightly to ensure even sanding.
   • Avoid tilting the sander, which can create uneven surfaces or gouges.
6. Skakel af: Lift the sander from the workpiece before releasing the power switch. Allow the belt to stop completely before setting the tool down.

6. Onderhoud

Regular maintenance ensures the longevity and safe operation of your Virutex LB31E Belt Sander.

• Skoonmaak:
  • Ontkoppel altyd die instrument voor skoonmaak.
  • Clean the tool regularly with a soft cloth. Do not use solvents or abrasive cleaners.
  • Use compressed air to clear dust from ventilation openings and around the motor.
  • Empty the dust bag/canister frequently if using dust collection.
• Sanding Belt Replacement: Replace worn or damaged sanding belts promptly. Refer to the "Installing the Sanding Belt" section for instructions.
• Carbon Brushes (if applicable): If your model uses carbon brushes, inspect them periodically and replace them when they are worn down to the minimum length. This should ideally be done by a qualified service technician.
• Koordinspeksie: Regularly inspect the power cord for damage. If damaged, have it repaired by a qualified technician.
• Berging: Bêre die skuurmasjien op 'n droë, veilige plek buite bereik van kinders.

7. Probleemoplossing

Hierdie afdeling spreek algemene probleme aan wat jy mag teëkom.

If you encounter problems not listed here or if solutions do not resolve the issue, please contact Virutex customer support.

8. Spesifikasies

9. Waarborg en Ondersteuning

Virutex products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Virutex website. In case of technical issues, repairs, or spare parts, please contact your authorized Virutex dealer or customer service department.

Vir verdere hulp, besoek asseblief: www.virutex.com
