Zumex Essential Pro Sitrusversapper Instruksiehandleiding

1. Inleiding

Thank you for choosing the Zumex Essential Pro Citrus Juicer. This professional-grade juicer is designed for efficient and reliable citrus juice extraction in commercial settings. Please read this manual thoroughly before operating the appliance to ensure safe and correct usage, and to maximize its performance and lifespan.

2. Veiligheidsinstruksies

Belangrik: Volg altyd basiese veiligheidsmaatreëls wanneer u elektriese toestelle gebruik om die risiko van brand, elektriese skok en beserings te verminder.

• Lees alle instruksies voor gebruik.
• Maak seker dat die kragtoevoer ooreenstem met die voltage gespesifiseer op die toestel.
• Moenie die motoreenheid, koord of prop in water of ander vloeistowwe dompel nie.
• Ontkoppel die toestel uit die stopcontact wanneer dit nie gebruik word nie, voordat u onderdele aanmekaarsit of uitmekaar haal, en voordat u skoonmaak.
• Hou hande en gereedskap weg van bewegende dele tydens werking om beserings te voorkom.
• Moenie enige toestel gebruik met 'n beskadigde koord of prop, of nadat die toestel wanfunksioneer of op enige manier beskadig is nie.
• Gebruik slegs aanhegsels wat deur die vervaardiger aanbeveel of verkoop word.
• Hierdie toestel is nie bedoel vir gebruik deur persone (insluitend kinders) met verminderde fisiese, sensoriese of geestelike vermoëns, of 'n gebrek aan ervaring en kennis nie, tensy hulle toesig of instruksies oor die gebruik van die toestel gegee is deur 'n persoon wat verantwoordelik is vir hul veiligheid. .
• Moenie buite gebruik nie.
• Moenie dat die koord oor die rand van 'n tafel of toonbank hang, of aan warm oppervlaktes raak nie.

3. Produk verbyview

The Zumex Essential Pro is a robust citrus juicer featuring an integrated high-capacity feeder and an intuitive digital display. Familiarize yourself with the main components before operation.

Sleutelkomponente:

• Feeder Basket: Holds multiple citrus fruits for continuous juicing.
• Juicing Mechanism: Internal components that cut and press the fruit.
• Beheerpaneel: Digital display with 'Touch Control' for operation and settings.
• Sap-uitloop: Where the extracted juice is dispensed.
• Vullisdromme: Collects the squeezed fruit peels.

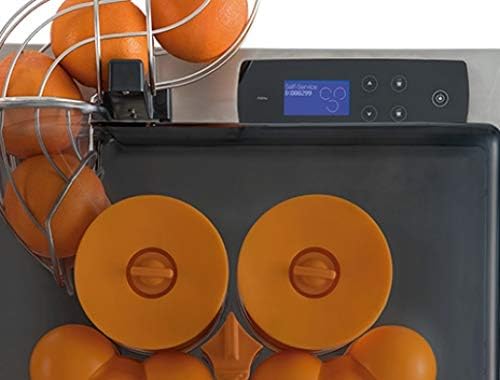

Beeld: Bo view of the juicer, highlighting the feeder basket, juicing cones, and the digital control panel.

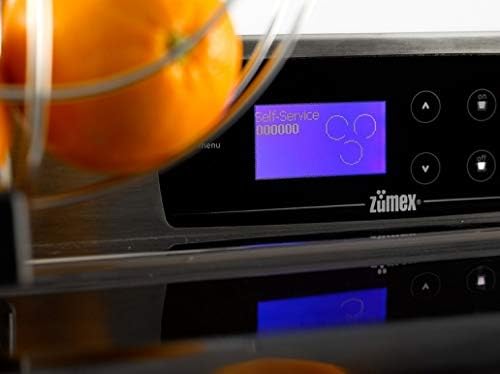

Beeld: Gedetailleerd view of the 'Touch Control' digital display, showing operational status and fruit count.

4. Opstelling

Before first use, ensure all packaging materials are removed and the juicer is placed on a stable, level surface.

1. Pak uit: Carefully remove the juicer from its packaging. Retain packaging for future transport if needed.
2. Posisie: Place the juicer on a sturdy, flat, and dry countertop or table. Ensure there is adequate space around the unit for ventilation and operation.
3. Monteer komponente: Ensure all removable parts, such as the feeder basket, juicing cones, and waste bins, are correctly installed according to the assembly diagrams (refer to product diagrams if available).
4. Koppel krag: Steek die kragkabel in 'n geaarde elektriese aansluiting.
5. Aanvanklike skoonmaak: Before first use, clean all parts that will come into contact with fruit or juice. Refer to the 'Cleaning and Maintenance' section for detailed instructions.

Image: The feeder basket, designed to hold multiple oranges, ready for juicing.

5. Bedryfsinstruksies

The Zumex Essential Pro is designed for intuitive operation. Follow these steps to extract fresh citrus juice.

1. Berei vrugte voor: Use fresh, firm citrus fruits (oranges, lemons, limes, grapefruits). Wash the fruits thoroughly. The juicer is optimized for citrus fruits as indicated in its specifications.
2. Load Feeder: Place the prepared fruits into the high-capacity feeder basket. The juicer can hold 4-5 fruits at a time.
3. Krag aan: Ensure the juicer is plugged in. Use the 'Touch Control' digital display to power on the unit.
4. Select Mode (if applicable): The 'Touch Control' display may offer various settings or modes. Refer to the on-screen prompts for options like 'Self-Service' or specific juicing programs.
5. Begin sap maak: The juicer will automatically begin processing the fruits from the feeder. For models with a 'PRESS' button, activate the juicing cycle as indicated.

Image: The 'PRESS' button, used to initiate or control the juicing process.
6. Versamel sap: Position a container under the juice spout to collect the fresh juice.
7. Monitor Waste: The juicer automatically separates pulp and peels into designated waste bins. Monitor these bins and empty them as they fill to prevent blockages.
8. Voltooi sapmaak: Once all fruits are processed or you have enough juice, turn off the juicer using the control panel.

6. Skoonmaak en Onderhoud

Regular cleaning and maintenance are crucial for the hygiene, performance, and longevity of your Zumex Essential Pro juicer. Note: The manufacturer states this item is NOT dishwasher safe.

1. Ontkoppel: Always unplug the juicer from the power outlet before cleaning or performing any maintenance.
2. Demonteer: Carefully disassemble all removable parts: feeder basket, juicing cones, juice collection tray, and waste bins.
3. Spoel: Rinse all removable parts under warm running water to remove large pulp and peel residues.
4. Was: Hand wash all removable parts using a mild detergent and a soft brush or sponge. Pay special attention to areas where pulp can accumulate.
5. Maak hoofeenheid skoon: Wipe the main motor unit and exterior surfaces with a damp lap. Moenie skuurmiddels gebruik of die hoofeenheid in water dompel nie.
6. Droog: Ensure all parts are thoroughly dried before reassembling or storing the juicer. Air drying is recommended.
7. Hermonteer: Reassemble the juicer components, ensuring they are correctly fitted.

7. Probleemoplossing

If you encounter issues with your Zumex Essential Pro juicer, refer to the following common problems and solutions.

• Sapmasjien skakel nie aan nie:
  • Kontroleer of die kragkabel stewig in 'n werkende stopcontact ingeprop is.
  • Ensure all safety switches and covers are correctly closed and engaged.
• Poor juice extraction or excessive pulp:
  • Ensure you are using fresh, firm citrus fruits. Overripe or soft fruits may yield less juice.
  • Check if the juicing components are clean and free from blockages.
• Ongewone geraas tydens werking:
  • Turn off and unplug the juicer. Check for any foreign objects or fruit pieces lodged in the juicing mechanism.
  • Ensure all parts are correctly assembled.
• Digital display not responding:
  • Try unplugging the unit for a few minutes and then plugging it back in to reset the system.
  • Maak seker dat die beheerpaneel skoon en droog is.

If the problem persists after attempting these solutions, please contact Zumex customer support.

8. Spesifikasies

9. Waarborg en Ondersteuning

For warranty information, technical support, or service inquiries, please contact Zumex customer service directly. Keep your purchase receipt and product serial number handy when contacting support.

Zumex Kontakbesonderhede:
Please refer to the official Zumex webwebwerf of u aankoopdokumentasie vir die mees onlangse kontakbesonderhede.
