Inleiding
This instruction manual provides essential information for the proper installation, maintenance, and troubleshooting of the Briggs & Stratton 492945 Screw/Spring Engine Parts. This component is a critical part of the recoil starter assembly in various Briggs & Stratton small engines, ensuring the pull cord retracts correctly after engine startup. Please read this manual thoroughly before attempting any installation or repair.
Veiligheidsinligting
Always prioritize safety when working with engine parts. Disconnect the spark plug wire before performing any service to prevent accidental engine startup. Wear appropriate personal protective equipment, such as gloves and eye protection. If you are unsure about any procedure, consult a qualified service technician.
Produk verbyview

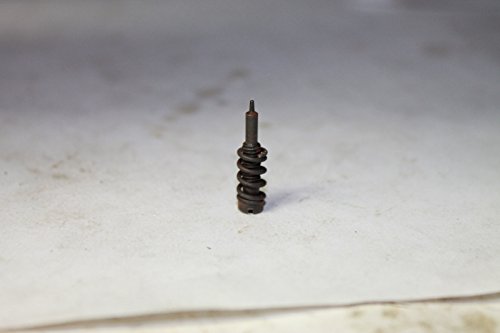

Figuur 1: Briggs & Stratton 492945 Screw/Spring Engine Part. This image displays the coiled spring and associated screw, which are integral to the recoil starter mechanism, allowing the pull cord to retract smoothly.
The Briggs & Stratton 492945 is a genuine OEM (Original Equipment Manufacturer) replacement part. It consists of a recoil spring and a screw, designed to restore the functionality of your engine's pull-start mechanism. This part is crucial for the proper retraction of the starter rope after the engine has been cranked.
Opstelling en installasie
Proper installation is key to the longevity and performance of this part. Follow these steps carefully:
- Berei die enjin voor: Maak seker dat die enjin koel is en dat die vonkpropdraad ontkoppel is om te verhoed dat dit per ongeluk begin.
- Remove the Recoil Starter Assembly: Locate and remove the bolts or screws securing the recoil starter housing to the engine. Carefully lift the assembly away.
- Disassemble the Recoil Starter: Depending on your specific recoil starter design, you may need to remove a central bolt or clip to access the spring mechanism. Note the orientation of all parts as you disassemble.
- Remove Old Spring/Screw: Carefully remove the old or damaged recoil spring and screw. Be cautious as springs can release tension suddenly.
- Install New Spring/Screw: Place the new Briggs & Stratton 492945 spring into its designated slot within the recoil housing. Ensure it is seated correctly. Secure it with the new screw provided.
- Rewind the Spring (if necessary): Some recoil springs require pre-tensioning. Follow your engine's specific service manual for instructions on how to properly wind the spring to achieve the correct tension for rope retraction.
- Herstel en toets: Reassemble the recoil starter housing, ensuring all components are correctly aligned. Reattach the assembly to the engine. Gently pull the starter rope to confirm it retracts smoothly and fully.
- Herkoppel die vonkprop: Once satisfied with the installation, reconnect the spark plug wire.
Gereedskap benodig: Common hand tools such as screwdrivers, wrenches, and possibly pliers may be needed for this procedure.
Bedryfsoorwegings
While the 492945 screw/spring itself does not have an "operating" procedure, its proper function is integral to the engine's starting process. A correctly installed spring ensures the starter rope retracts fully and smoothly after each pull, allowing for consistent engine starts. Avoid yanking the rope excessively or letting it snap back violently, as this can prematurely wear out the spring and other recoil components.
Onderhoud
Regular maintenance of your engine's recoil starter assembly can extend the life of the 492945 screw/spring:
- Hou skoon: Periodically remove the recoil starter assembly and clean out any dirt, grass clippings, or debris that may accumulate inside. Debris can impede the spring's movement and cause premature wear.
- Inspekteer vir slytasie: During cleaning or other engine maintenance, visually inspect the spring for signs of fatigue, rust, or breakage. Check the screw for stripping or damage.
- Smering: A very light application of dry lubricant (e.g., graphite powder) can be applied to the spring and internal moving parts of the recoil assembly to ensure smooth operation, if recommended by your engine's service manual. Avoid heavy grease, which can attract dirt.
Probleemoplossing
If you experience issues with your recoil starter, the 492945 screw/spring may be a contributing factor. Here are common problems and potential solutions:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Starter rope does not retract fully. | Broken or fatigued recoil spring (492945). Incorrect spring tension. Debris in recoil housing. | Inspect and replace the 492945 spring if broken. Adjust spring tension according to engine manual. Clean recoil housing. |
| Starter rope is difficult to pull or feels "stuck". | Spring binding. Debris in recoil mechanism. | Disassemble and clean the recoil assembly. Ensure the spring is seated correctly and not binding. |
| Engine does not crank when pull cord is pulled. | Recoil pawls not engaging. Spring issues preventing proper engagement. | Inspect recoil pawls and spring for damage or improper installation. Replace damaged parts. |
Spesifikasies
- Handelsmerk: Briggs en Stratton
- Onderdeelnommer: 492945
- UPC: 024847840377
- Eenheidtelling: 1.0 Tel
- Tipe: Screw/Spring Engine Part (Recoil Spring)
Waarborg en Ondersteuning
This Briggs & Stratton 492945 Screw/Spring Engine Part is covered by a manufacturer's warranty, if applicable. For specific warranty details, claims, or technical support, please refer to the official Briggs & Stratton website or contact their customer service directly. When contacting support, please have your engine model and serial numbers ready, in addition to the part number 492945.
Vir meer inligting, besoek die amptenaar Briggs en Stratton webwebwerf.
