BaoFeng BF-888S Walkie Talkie User Manual

1. Inleiding

The BaoFeng BF-888S is a compact and reliable two-way radio designed for clear and efficient communication over short to medium distances. Featuring a 16-channel capacity, UHF frequency range, and a durable 1500mAh Li-ion battery, it is suitable for various applications including security, event coordination, and outdoor activities. This manual provides essential information for the safe and effective use of your BF-888S walkie talkie.

2. Pakketinhoud

Before use, please check the package contents to ensure all items are present:

• 1 x BaoFeng BF-888S Portable Radio
• 1 x Li-ioon batterypak (1500mAh)
• 1 x Laaier (Laaidok en WS-adapter)
• 1 x Antenna
• 1 x gordelklem
• 1 x Headphone (Earphone)
• 1 x Gebruikershandleiding

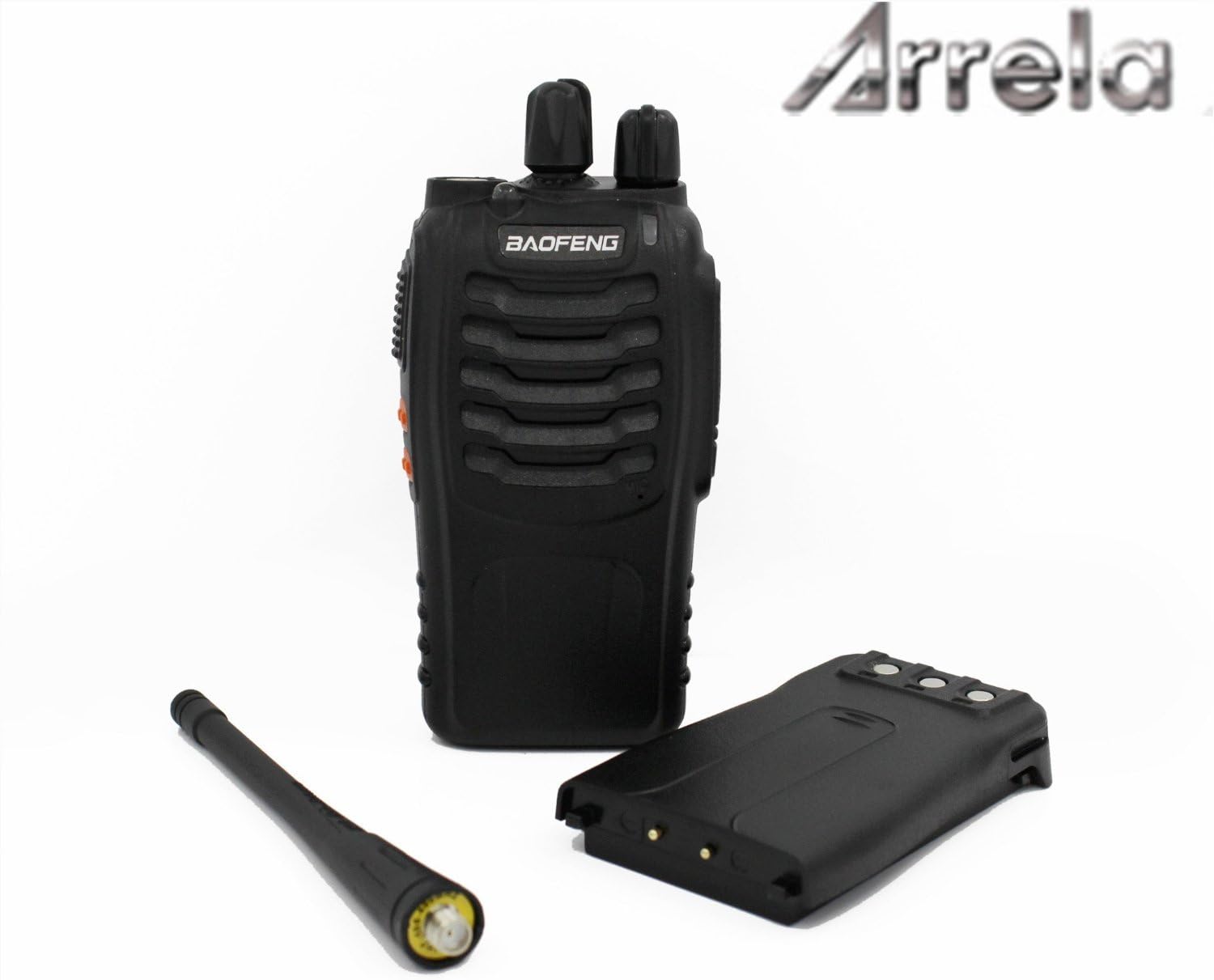

Image: BaoFeng BF-888S Walkie Talkie components, showing the radio unit, detachable battery, and antenna.

3. Produk verbyview

Familiarize yourself with the main parts of your BF-888S walkie talkie:

• Antenna: Vir die oordrag en ontvangs van seine.
• Krag/volumeknop: Draai kloksgewys om aan te skakel en die volume te verhoog; antikloksgewys om die volume te verlaag en af ​​te skakel.
• Kanaalkieserknop: Draai om een ​​van die 16 beskikbare kanale te kies.
• PTT (druk-om-te-praat)-knoppie: Druk en hou om te stuur, laat los om te ontvang.
• Monitor-knoppie: Press to listen for weak signals or to disable squelch.
• Flashlight/Alarm Button: Short press for flashlight, long press for emergency alarm.
• Luidspreker/mikrofoon: Vir klankuitvoer en -invoer.
• Toebehore-aansluiting: For connecting the earphone or programming cable.
• Batterypak: Herlaaibare Li-ion battery.

Beeld: Voorkant view of the BaoFeng BF-888S Walkie Talkie placed in its charging dock.

4. Opstelling

4.1 Batteryinstallasie en -laai

1. Rig die batterypak met die groewe aan die agterkant van die radio.
2. Skuif die battery opwaarts totdat dit in plek klik.
3. To charge, place the radio with the installed battery into the charging dock. Ensure the metal contacts on the battery align with the contacts in the dock.
4. Connect the AC adapter to the charging dock and plug it into a power outlet. The charging indicator light will typically be red during charging and turn green when fully charged.
5. A full charge takes approximately 2-3 hours. The battery can last up to 15 days on standby after a full charge.

4.2 Antenna-aanhegting

1. Screw the antenna into the connector on the top of the radio by turning it clockwise until it is finger-tight. Do not overtighten.

4.3 Gordelklem-aanhegsel

1. Rig die gordelklip met die skroefgate aan die agterkant van die radio.
2. Secure the belt clip using the provided screws and a small screwdriver.

Image: BaoFeng BF-888S Walkie Talkie in its charging dock with an earphone connected to the accessory jack.

5. Bedryfsinstruksies

5.1 Powering On/Off and Volume Adjustment

• Om aan te skakel, draai die Aan/Volume-knoppie kloksgewys totdat jy 'n klik hoor.
• Gaan voort met die kloksgewyse draai om die volume te verhoog.
• Rotate counter-clockwise to decrease the volume and power off.

5.2 Kanaalkeuse

• Draai die Kanaalkieser-knoppie om een ​​van die 16 beskikbare kanale te kies.
• Maak seker dat alle radio's waarmee jy wil kommunikeer op dieselfde kanaal ingestel is.

5.3 Versend en Ontvangs

• Om oordra, press and hold the PTT (Push-to-Talk) button. Speak clearly into the microphone, holding the radio approximately 2-5 cm from your mouth.
• Om ontvang, release the PTT button. The radio will automatically receive signals on the selected channel.

5.4 VOX-funksie (Stembediende oordrag)

• The BF-888S supports VOX, allowing hands-free transmission when voice is detected. This feature can be enabled/disabled and adjusted via PC programming.

5.5 Flashlight and Emergency Alarm

• Flitslig: Short press the Flashlight/Alarm button to turn the built-in LED flashlight on or off.
• Noodalarm: Long press the Flashlight/Alarm button to activate the emergency alarm function. Press again to deactivate.

5.6 Stemprompt

• The radio provides voice prompts for channel selection and other functions. This feature can be set to English or Chinese via PC programming.

6. Onderhoud

6.1 Batterysorg

• Laai die battery volledig voor die eerste gebruik.
• Vermy oorlaai of heeltemal leegmaak van die battery om sy lewensduur te verleng.
• Indien die radio nie vir 'n lang tydperk gebruik gaan word nie, verwyder die battery en bêre dit op 'n koel, droë plek.
• The radio features a battery saving mode and a low voltage alert to help manage battery life.

6.2 Skoonmaak

• Maak die radio se oppervlak skoon met 'n sagte, damp lap. Moenie harde chemikalieë of skuur skoonmaakmiddels gebruik nie.
• Ensure the accessory jack cover is securely closed when not in use to protect against dust and moisture.

6.3 Berging

• Store the radio in a dry, cool environment away from direct sunlight and extreme temperatures.

7. Probleemoplossing

If you encounter issues with your BaoFeng BF-888S, refer to the following common problems and solutions:

8. Spesifikasies

9. Waarborg

This product is sold without an explicit warranty. Please refer to your point of purchase for any return or exchange policies.

10. Ondersteuning

For further assistance or inquiries regarding your BaoFeng BF-888S Walkie Talkie, please contact the retailer or visit the official BaoFeng webwebwerf vir ondersteuningsbronne.
