Gewiss GW82206 EXTRO 100W E27 Incandescent Fixture User Manual

Model: GW82206

1. Inleiding

Thank you for choosing the Gewiss GW82206 EXTRO 100W E27 Incandescent Fixture. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.

2. Belangrike veiligheidsinligting

Om veilige werking te verseker en skade te voorkom, neem asseblief die volgende veiligheidsmaatreëls in ag:

  • Ontkoppel krag: Always disconnect power at the main circuit breaker or fuse box before installing, servicing, or cleaning the fixture.
  • Gekwalifiseerde Elektrisiën: Installasie moet deur 'n gekwalifiseerde elektrisiën uitgevoer word in ooreenstemming met alle plaaslike en nasionale elektriese kodes.
  • Correct Bulb Type: Use only incandescent bulbs with an E27 base and a maximum wattagvan 100W. Moenie die gespesifiseerde watt oorskry nietage.
  • Vermy vog: Do not install this fixture in excessively damp or wet locations unless specifically rated for such environments.
  • Hanteer versigtig: Light bulbs can become hot. Allow them to cool before touching or replacing.
  • Veilige montering: Ensure the fixture is securely mounted to a structurally sound surface.

3. Installasie-instruksies

Follow these steps to install your Gewiss GW82206 EXTRO fixture:

Gewiss GW82206 EXTRO 100W E27 Incandescent Fixture

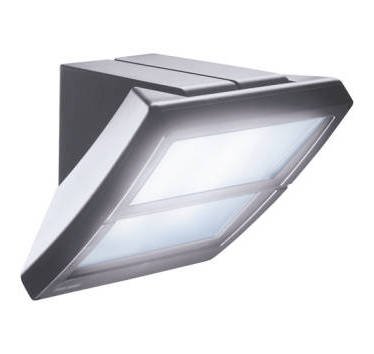

Figure 1: Gewiss GW82206 EXTRO 100W E27 Incandescent Fixture. This image shows the overall design of the lighting unit, including its housing and E27 bulb socket.

  1. Berei voor vir installasie: Turn off the main power supply to the installation area at the circuit breaker.
  2. Monteer die armatuur: Securely attach the fixture's mounting bracket to the wall or ceiling using appropriate screws and anchors (not included, unless specified). Ensure the mounting surface can support the weight of the fixture.
  3. Bedraad die toebehore: Connect the electrical wires from the fixture to the corresponding wires from your electrical supply. Typically, this involves connecting live (L), neutral (N), and ground (GND) wires. Refer to local electrical codes for proper wiring procedures.
  4. Secure the Fixture Body: Once wiring is complete, carefully attach the main body of the fixture to the mounting bracket, ensuring all connections are secure and no wires are pinched.
  5. Installeer die gloeilamp: Screw an E27 incandescent bulb (max 100W) into the fixture's socket. Do not overtighten.
  6. Herstel krag: Skakel die hoofkragtoevoer weer aan by die stroombreker.
  7. Toetswerking: Activate the light switch to ensure the fixture is working correctly.

4. Operasie

The Gewiss GW82206 EXTRO fixture operates via a standard wall switch connected to its electrical supply. Simply toggle the switch to turn the light on or off.

5. Onderhoud en versorging

  • Skoonmaak: Disconnect power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
  • Gloeilamp vervanging:
    1. Skakel die kragtoevoer na die toebehore af.
    2. Allow the old bulb to cool completely before touching.
    3. Carefully unscrew the old bulb counter-clockwise.
    4. Screw in a new E27 incandescent bulb (max 100W) clockwise until snug. Do not overtighten.
    5. Herstel krag en toets.

6. Probleemoplossing

If you encounter issues with your fixture, refer to the table below:

ProbleemMoontlike oorsaakOplossing
Lig skakel nie aan nie.Geen kragtoevoer.
Gloeilamp is foutief of los.
Verkeerde bedrading.		Gaan stroombreker na.
Replace or tighten bulb.
Raadpleeg 'n gekwalifiseerde elektrisiën om die bedrading na te gaan.
Ligte flikkerings.Los gloeilamp.
Los bedrading konneksie.
Defekte gloeilamp.		Draai die gloeilamp vas.
Raadpleeg 'n gekwalifiseerde elektrisiën om die bedrading na te gaan.
Vervang gloeilamp.
Gloeilamp brand vinnig uit.Verkeerde wattage gloeilamp.
Swak ventilasie.
Voltage skommelinge.		Ensure bulb is 100W E27 or less.
Ensure fixture is not enclosed in a way that traps heat.
Raadpleeg 'n elektrisiën om die huishoudelike volume te kontroleertage.

As probleme voortduur, kontak kliëntediens.

7. Tegniese spesifikasies

  • Handelsmerk: Gewiss
  • Modelnommer: GW82206
  • Gloeilamp tipe: E27 Incandescent (Max 100W)
  • ASIN: B00AMHR3Q0
  • Vervaardiger: Gewiss
  • Eerste datum beskikbaar: 19 April 2022
  • Gestop deur vervaardiger: Nee

8. Waarborginligting

Gewiss products are manufactured to high-quality standards. This product is covered by a limited warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region. Please retain your proof of purchase for warranty claims. For detailed warranty information, please refer to the official Gewiss webwebwerf of kontak kliëntediens.

9. Kliëntediens

If you have any questions, require technical assistance, or need to report a problem, please contact Gewiss customer support through their official website or the contact information provided with your purchase. Please have your model number (GW82206) and proof of purchase ready when contacting support.

Amptelik Webwebwerf: www.gewiss.com
