LG Electronics MCK49049101 Dryer Lint Filter Cover Instruction Manual

Inleiding

This manual provides essential information for the proper installation, use, and maintenance of your LG Electronics MCK49049101 Dryer Lint Filter Cover. Please read these instructions carefully before proceeding to ensure correct operation and to prevent damage.

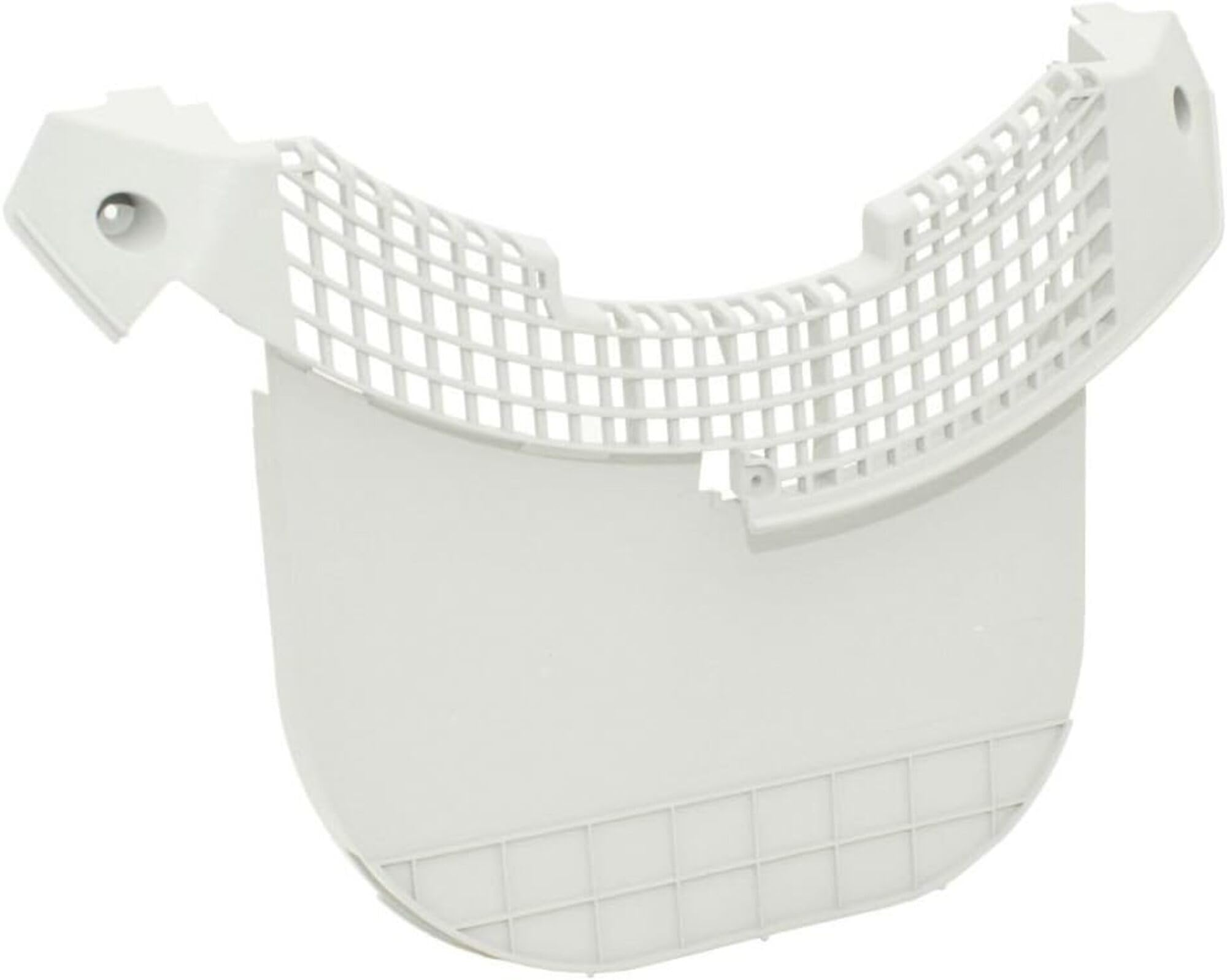

Image: The LG Electronics MCK49049101 Dryer Lint Filter Cover, shown in gray. This component is designed to house the lint filter within compatible LG dryer models.

Veiligheidsinligting

Always disconnect power to the dryer before attempting any installation, maintenance, or repair. Wear appropriate personal protective equipment, such as gloves, to prevent injury. Refer to your dryer's main instruction manual for specific safety precautions related to your appliance.

Verenigbaarheid

The LG Electronics MCK49049101 Dryer Lint Filter Cover is compatible with various LG Electronics dryer models. It is crucial to verify compatibility with your specific dryer model before installation. Refer to your dryer's original manual or the product listing for a comprehensive list of compatible models. Some known compatible models include: DLE2601R, DLE2601W, DLE2701V, DLE3050W, DLE3170W, DLE3180W, DLE3300W, DLEX2801L, DLEX2801R, DLEX2801W, DLEX2901V, DLEX3001P, DLEX3001R, DLEX3001W, DLEX3250R, DLEX3250V, DLEX3250W, DLEX3360R, DLEX3360V, DLEX3360W, DLEX3370R, DLEX3370V, DLEX3370W, DLEX3470V, DLEX3470W, DLEX3550V, DLEX3550W, DLEX3570V, DLEX3570W, DLEX3650V, DLEX3875V, DLEX3875W, DLEX3885C, DLEX3885W, DLEX3900K, DLEX4070V, DLEX4070W, DLEX4270V, DLEX4270W, DLEX4370K, DLEX4370W, DLG2602R, DLG2602W, DLG2702V, DLG3051W, DLG3171W, DLG3181W, DLGX2802L, DLGX2802R, DLGX2802W, DLGX2902V, DLGX3002P, DLGX3002R, DLGX3002W, DLGX3251R, DLGX3251V, DLGX3251W, DLGX3361R, DLGX3361V, DLGX3361W, DLGX3371R, DLGX3371V, DLGX3371W, DLGX3471V, DLGX3471W, DLGX3551V, DLGX3551W, DLGX3571V, DLGX3571W, DLGX3651V, DLGX3876V, DLGX3876W, DLGX3886C, DLGX3886W, DLGX4071V, DLGX4071W, DLGX4271V, DLGX4271W, DLGX4371K, DLGX4371W, LSDE388VS, LSDG389VS.

Opstelling en installasie

Ontkoppel krag: Before beginning, ensure the dryer is unplugged from the electrical outlet or that the circuit breaker supplying power to the dryer is turned off.
Access Lint Filter Housing: Open the dryer door. The lint filter housing is typically located at the bottom of the dryer opening.
Remove Old Cover (if applicable): If replacing an existing cover, carefully remove any screws securing the old lint filter cover. Note the position of any clips or sensors. Some models may have four screws inside and two outside. Be cautious of the dryness sensor attached to the bottom, which may be clipped in and connected to a wire harness. Avoid using excessive force to prevent breaking clips.
Skoon area: While the housing is accessible, vacuum any accumulated lint from the dryer's lint trap area.
Installeer nuwe omslag: Position the new LG MCK49049101 Dryer Lint Filter Cover into place. Ensure it aligns correctly with the dryer opening and any mounting points.
Veilige Dekking: Reinstall any screws that were removed. Ensure the cover sits flush and securely. If a dryness sensor was disconnected, reattach it carefully.
Toetspasvorm: Insert your lint filter into the new cover to ensure it fits flush and securely without any gaps. The filter should sit properly within the cover to prevent clothes from snagging and lint from bypassing the filter.
Herstel krag: Once the new cover is securely installed and the lint filter is in place, restore power to the dryer.

Let wel: Some users have reported that older dryer models may require a new lint filter (e.g., LG part ADQ56656401) to ensure a proper fit with this lint filter cover, as design changes may have occurred over time. Always verify the fit of your existing lint filter with the new cover. If your lint filter does not sit flush, consider replacing it with a compatible version.

Bedryfsinstruksies

The lint filter cover itself does not require operational steps. Its function is passive, providing the housing for the removable lint filter. Ensure the lint filter is always properly seated within this cover before operating the dryer.

Before Each Load: Always remove and clean the lint filter before starting a new drying cycle.
Behoorlike sitplek: After cleaning, reinsert the lint filter firmly into the lint filter cover. Ensure it sits flush and securely to prevent lint bypass and potential damage to clothing or the dryer.

Onderhoud

Regular maintenance of the lint filter cover ensures optimal dryer performance and longevity.

Gereelde inspeksie: Periodically inspect the lint filter cover for any signs of wear, cracks, warping, or damage. A damaged cover can snag clothes or allow lint to enter the dryer's exhaust system.
Skoonmaak: If lint or debris accumulates on the cover itself, wipe it clean with a damp lap. Vermy skuur skoonmakers.
Lint Trap Area: During lint filter cleaning, also check the area around the lint filter cover for any accumulated lint and remove it.

Probleemoplossing

This section addresses common issues related to the lint filter cover.

Probleem	Moontlike oorsaak	Oplossing
Lint filter does not sit flush in the cover.	Incorrect lint filter for the cover. Debris obstructing the fit. Cover or filter is warped/damaged.	Ensure you are using the correct lint filter compatible with this cover. Clean any debris from the cover and filter. Inspect both the cover and filter for warping or damage. Replace if necessary.
Clothes are snagging or tearing.	Lint filter cover is damaged (cracked, warped edges). Lint filter is not seated correctly or is damaged.	Inspect the lint filter cover for any sharp edges or deformities. Replace if damaged. Ensure the lint filter is fully inserted and sits flush. Replace the lint filter if it is warped or broken.
Excessive lint accumulation outside the filter.	Lint filter not properly seated. Gap between filter and cover.	Ensure the lint filter is fully inserted and flush with the cover. Inspect the cover and filter for damage that might create gaps.

Spesifikasies

Onderdeelnommer: MCK49049101
Handelsmerk: LG Electronics
Tipe: Dryer Lint Filter Cover
Kleur: Grys
Materiaal: Plastiek
Item gewig: Ongeveer 0.01 onse
Ingesluit komponente: 1 x Lint Filter Cover
UPC: 095225456152

Waarborg inligting

According to manufacturer specifications, this product is sold without a warranty. Please refer to your point of purchase for their return or exchange policies, if applicable.

Ondersteuning

For further assistance or inquiries regarding this product, please contact LG Electronics customer support or refer to the official LG website for your region. When contacting support, please have your dryer's model number and the part number (MCK49049101) available.

LG Electronics Official Webwebwerf: www.lg.com
