iLive ISB212B Bluetooth Speaker Instruction Manual

Inleiding

This manual provides detailed instructions for the setup, operation, and maintenance of your iLive ISB212B Bluetooth Speaker. This compact speaker delivers audio wirelessly from compatible Bluetooth devices and also supports wired connections. Please read this manual thoroughly before using your speaker.

Pakketinhoud

• iLive ISB212B Bluetooth Speaker
• Mini-USB to USB Charging Cable

Produk Kenmerke

• Wireless audio streaming via Bluetooth
• LED pairing indicator for connection status
• Compact, cylindrical design
• Rechargeable battery with approximately 2 hours of playback
• Mini-USB port for battery recharging
• 3.5mm Audio Input for wired connections

Kontroles en aanwysers

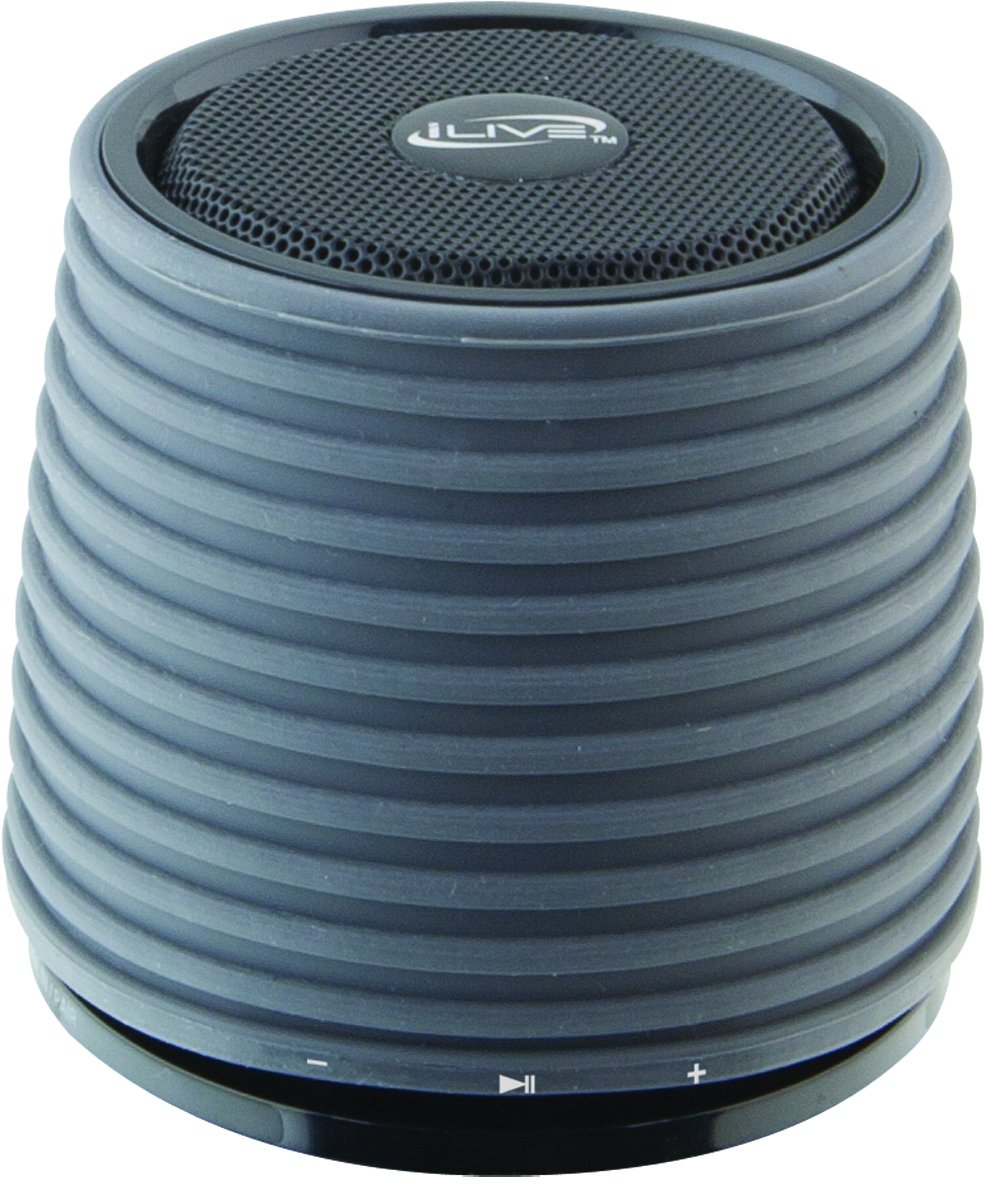

This image displays the iLive ISB212B Bluetooth Speaker. It features a cylindrical shape with a textured grey body and a black speaker grille on top. A band around the middle shows control buttons for play/pause, volume up/next track, and volume down/previous track.

• Kragknoppie: Druk en hou om aan/af te skakel.
• Speel/Pause-knoppie: Beheer klankterugspeel.
• Volume op / Volgende snit-knoppie: Druk kort vir volume op, druk lank vir die volgende snit.
• Volume Verlaag / Vorige Liedjie Knoppie: Druk kort om volume te verlaag, druk lank vir die vorige snit.
• LED Pairing Indicator: Toon Bluetooth-verbindingstatus.
• Mini-USB-poort: Vir die laai van die interne battery.
• 3.5 mm oudio-invoer: Vir die koppeling van eksterne klanktoestelle via 'n hulpkabel (nie ingesluit nie).

Opstelling

1. Laai die battery

1. Connect the small end of the included Mini-USB to USB charging cable to the Mini-USB port on the speaker.
2. Connect the large end of the USB charging cable to a powered USB port (e.g., computer, USB wall adapter).
3. Die LED-aanwyser sal tydens laai brand en afskakel of van kleur verander wanneer dit volledig gelaai is.
4. 'n Volle lading bied ongeveer 2 uur se speeltyd.

2. Skakel aan/af

• To power on, press and hold the Power button until the LED indicator illuminates.
• To power off, press and hold the Power button again until the LED indicator turns off.

Bedryfsinstruksies

1. Bluetooth-koppeling

1. Maak seker dat die luidspreker aangeskakel is en binne 30 voet van jou Bluetooth-toestel is.
2. The LED pairing indicator will flash, indicating it is in pairing mode.
3. On your Bluetooth device (smartphone, tablet, etc.), enable Bluetooth and search for new devices.
4. Select "iLive ISB212B" from the list of available devices.
5. Once paired, the LED pairing indicator will become solid, and you may hear an audible confirmation.
6. Indien paring misluk, skakel die luidspreker en jou toestel af en herhaal dan die stappe.

2. Speel klank

• After successful Bluetooth pairing, begin playing audio on your connected device.
• Gebruik die Speel/Pause-knoppie op die luidspreker om terugspeel te beheer.
• Use the Volume Up/Down buttons for volume adjustment. Long press for track navigation.

3. Using the 3.5mm Audio Input

• Connect one end of a 3.5mm audio cable (not included) to the 3.5mm Audio Input port on the speaker.
• Koppel die ander kant van die kabel aan die koptelefoonaansluiting of klankuitset van jou eksterne klanktoestel.
• Die luidspreker sal outomaties oorskakel na hulpinvoermodus.
• Adjust volume using your external device and the speaker's volume controls.

Onderhoud

• Maak die luidspreker skoon met 'n sagte, droë lap. Moenie skuurmiddels of oplosmiddels gebruik nie.
• Keep the speaker away from water, moisture, and extreme temperatures. This product is not waterproof.
• Bêre die luidspreker op 'n koel, droë plek wanneer dit nie vir lang tye gebruik word nie.
• Moenie probeer om die luidspreker uitmekaar te haal of te wysig nie. Dit sal die waarborg ongeldig maak.

Probleemoplossing

Spesifikasies

Waarborg en Ondersteuning

This iLive ISB212B Bluetooth Speaker comes with a 90-dae waarborg from the date of purchase. This warranty covers manufacturing defects. For technical support or warranty claims, please refer to the contact information provided with your product packaging or visit the official iLive webwebwerf.
