Vortice M 100/4" Wall-Mounted Bathroom Fan Instruction Manual

Inleiding

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Vortice M 100/4" wall-mounted bathroom fan. Please read these instructions carefully before use and retain them for future reference.

Figuur 1: Voorkant view of the Vortice M 100/4" wall-mounted bathroom fan.

Veiligheidsinligting

Volg altyd die volgende veiligheidsmaatreëls om beserings of skade te voorkom:

• Maak seker dat die kragtoevoer afgeskakel is voor installasie, onderhoud of skoonmaak.
• Installasie moet deur 'n gekwalifiseerde elektrisiën uitgevoer word in ooreenstemming met plaaslike bedradingsregulasies.
• Do not operate the fan with damaged wiring or if the casing is in die gedrang.
• Hierdie toestel is nie bedoel vir gebruik deur persone (insluitend kinders) met verminderde fisiese, sensoriese of geestelike vermoëns, of 'n gebrek aan ervaring en kennis nie, tensy hulle toesig of instruksies oor die gebruik van die toestel gegee is deur 'n persoon wat verantwoordelik is vir hul veiligheid. .
• Kinders moet onder toesig wees om te verseker dat hulle nie met die toestel speel nie.
• The fan is designed for ventilation purposes in bathrooms and similar environments. Do not use it for other applications.
• Ensure proper ventilation in the room to avoid backflow of gases from open-flued appliances.

Produk verbyview

The Vortice M 100/4" is a wall-mounted axial fan designed for efficient air extraction in bathrooms. Key features include:

• Duursame konstruksie: Motor support and grille are made of UV-treated ABS for longevity.
• Doeltreffende prestasie: High airflow, low noise level, and low energy consumption achieved through an aerofoil fan and motor support design.
• Ageing Resistant: Designed to withstand environmental factors over time.

Figuur 2: Agter view of the fan, illustrating the aerofoil blade design.

Opstelling en installasie

Follow these steps for proper installation of your Vortice M 100/4" fan. It is recommended that installation be carried out by a qualified professional.

1. Voorbereiding: Disconnect the main power supply to the installation area. Identify the desired mounting location on the wall, ensuring it is suitable for ventilation and electrical connections.
2. Montering: Secure the fan casing to the wall using appropriate fasteners. Ensure the fan is level and securely attached.
3. Kanaalverbinding: Connect the fan's outlet to the ventilation ductwork. Ensure a tight seal to prevent air leakage.
4. Elektriese verbinding:

   Refer to the wiring diagram below. Connect the electrical supply wires to the terminal block inside the fan unit. Ensure correct polarity (Live, Neutral) and proper grounding if applicable. The fan operates on 230-240V, 50Hz.



   Figuur 3: Intern view of the fan, showing the terminal block for electrical connections.



   Figure 4: Wiring diagram for the Vortice M 100/4" fan. A) Terminal block, B) Two-pole switch.

5. Finale tjeks: Once all connections are made, replace the fan cover securely. Restore power and test the fan's operation.

Bedryfsinstruksies

The Vortice M 100/4" fan is designed for simple operation:

• Krag aan/af: The fan is typically connected to a light switch or a separate wall switch in the bathroom. Flipping the switch will turn the fan on or off.
• Deurlopende werking: For continuous ventilation, ensure the switch remains in the 'ON' position.
• Intermitterende werking: For intermittent use, activate the fan as needed, for example, during and after showering.

Onderhoud

Gereelde onderhoud verseker optimale werkverrigting en lang lewensduur van jou waaier.

1. Kragontkoppeling: Always disconnect the power supply before performing any maintenance.
2. Maak die rooster skoon: Periodically remove the front grille and clean it with a soft, damp lap. Moenie skuur skoonmaakmiddels of oplosmiddels gebruik nie.
3. Skoonmaak van die waaierblaaie: If accessible, gently wipe the fan blades to remove dust and debris. Be careful not to bend or damage the blades.
4. Hermontering: Ensure all parts are dry before reassembling the fan. Securely attach the grille.
5. Frekwensie: Cleaning frequency depends on usage and environmental conditions, but generally every 3-6 months is recommended.

Probleemoplossing

If you encounter issues with your Vortice M 100/4" fan, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, contact a qualified electrician or Vortice customer support.

Spesifikasies

Technical specifications for the Vortice M 100/4" Wall-Mounted Bathroom Fan (Model 11201):

Figure 5: Technical drawing showing key dimensions (A, B, C, D, E) of the fan.

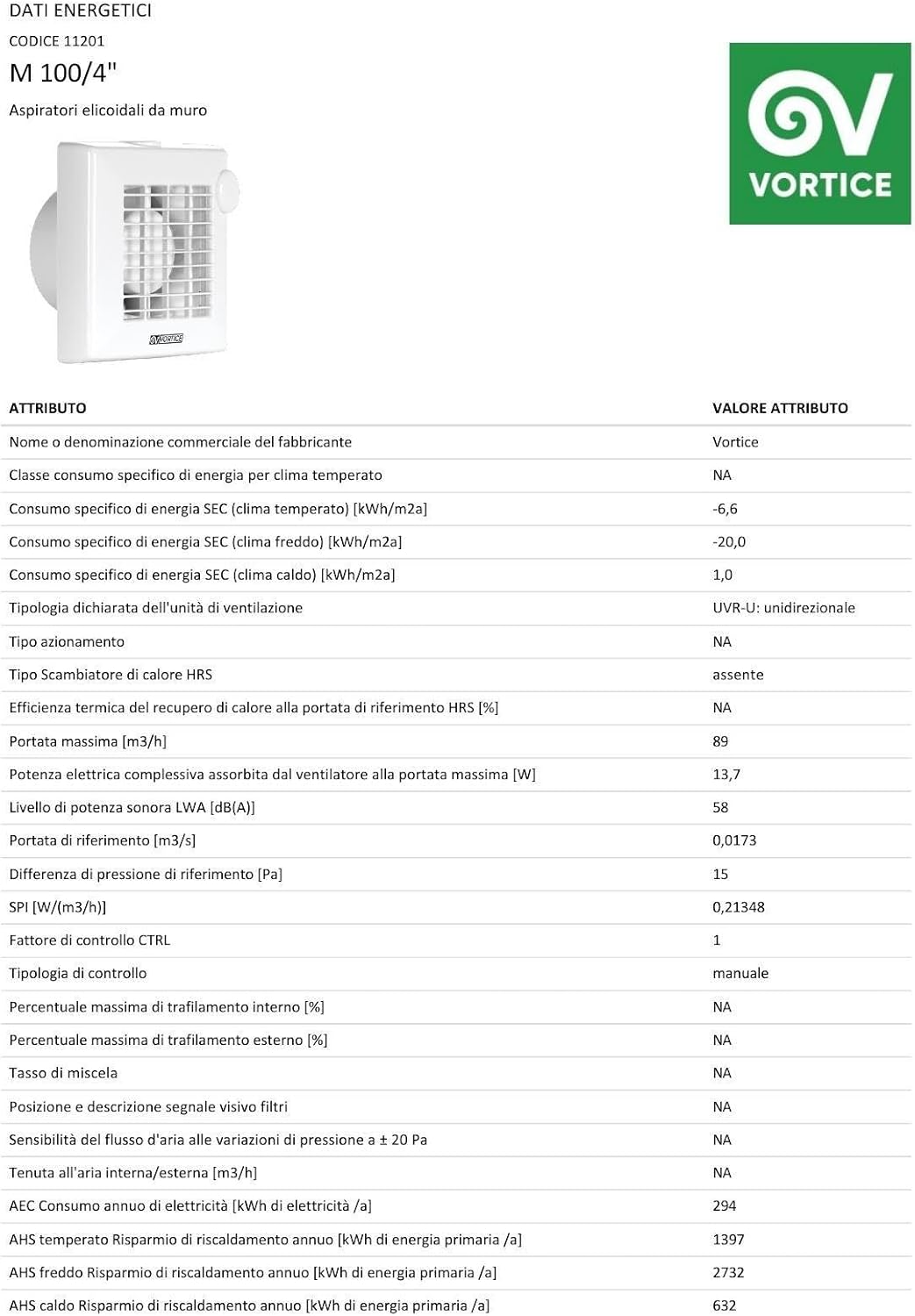

Figure 6: Energy label providing efficiency data for the fan.

Waarborg en Ondersteuning

For warranty information, please refer to the documentation provided with your purchase or visit the official Vortice website. For technical support or service, contact your local distributor or the manufacturer directly.

Vervaardiger: KORING

Webwebwerf: www.vortice.com (Bvampdie skakel, werklike skakel kan verskil)
