Peavey PVX 12 Passiewe Luidspreker Instruksiehandleiding

1. Inleiding

The Peavey PVX 12 is a passive loudspeaker designed for live sound reinforcement and speech applications. It features a lightweight, durable molded polypropylene enclosure, a heavy-duty 12-inch woofer, and a Peavey RX14 1.4-inch titanium diaphragm compression driver coupled to a constant directivity horn. This manual provides essential information for the safe and effective setup, operation, and maintenance of your PVX 12 loudspeaker.

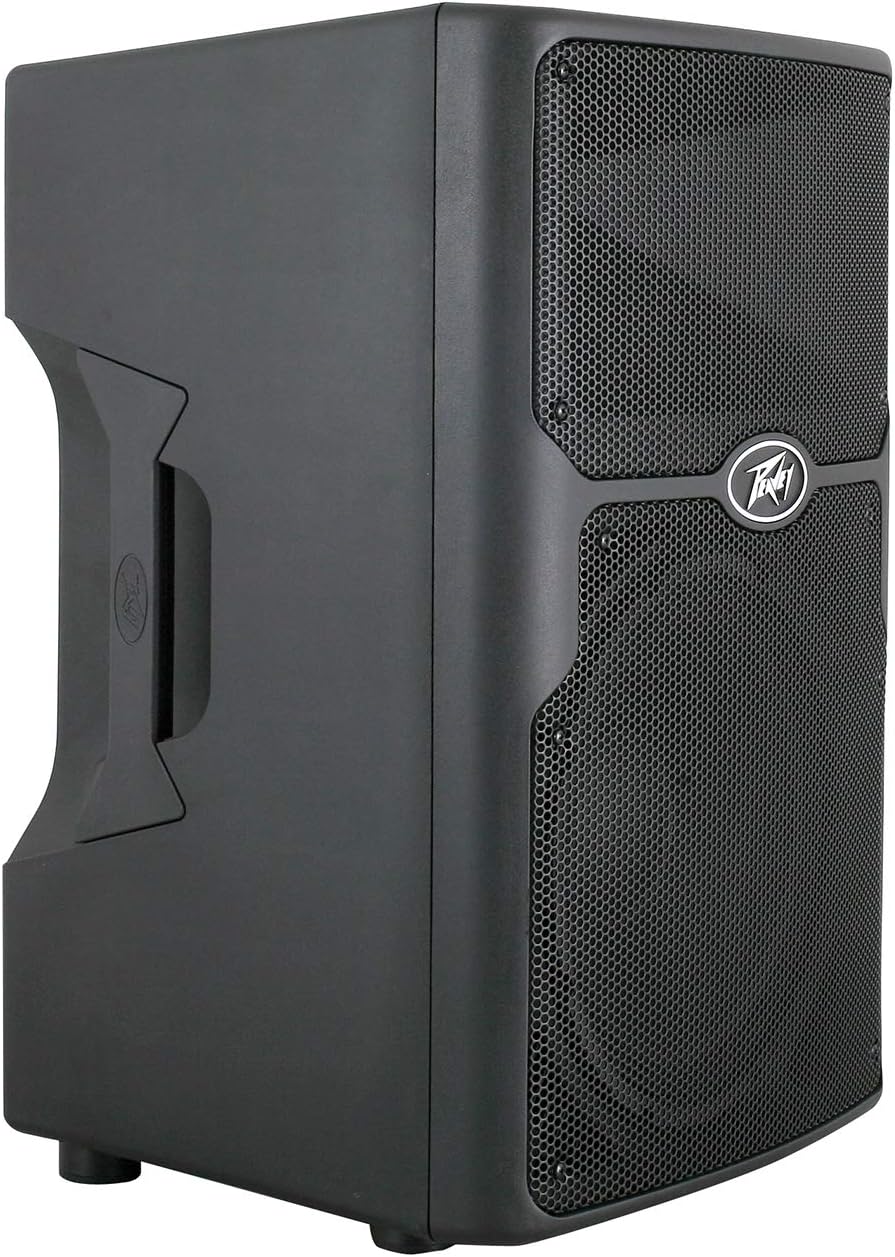

Figuur 1: Voorhoekig view of the Peavey PVX 12 Passive Loudspeaker. This image shows the speaker's robust grille and overall cabinet design.

2. Veiligheidsinligting

Lees en verstaan ​​asseblief alle veiligheidsinstruksies voordat u hierdie produk gebruik. Bewaar hierdie handleiding vir toekomstige verwysing.

• Kraghantering: Do not exceed the specified power ratings (400 watts program, 800 watts peak). Overpowering can cause permanent damage to the speaker components.
• Ventilasie: Ensure adequate ventilation around the loudspeaker. Do not block ventilation openings.
• Vog: This product is not waterproof. Do not expose it to rain, moisture, or excessive humidity.
• Plasing: Position the loudspeaker on a stable, level surface or use appropriate mounting hardware. Ensure any suspended installations are performed by qualified personnel using certified equipment.
• Gehoorbeskerming: Langdurige blootstelling aan hoë klankdrukvlakke kan permanente gehoorskade veroorsaak. Gebruik gepaste gehoorbeskerming wanneer die luidspreker teen hoë volumes gebruik word.
• Diens: Verwys alle diens na gekwalifiseerde dienspersoneel. Moenie probeer om hierdie produk self te diens nie.

3. Kenmerke

The Peavey PVX 12 Passive Loudspeaker incorporates several design elements for performance and durability:

• 400 watts program power handling.
• 800 watts peak power handling.
• Top, bottom, and right side flying point inserts for versatile mounting options.
• Full-coverage heavy-duty perforated steel grille with a powder-coat finish for speaker protection.
• Rugged construction with a lightweight, roadworthy molded polypropylene exterior.

4. Opstelling

4.1 Uitpak

Carefully remove the loudspeaker from its packaging. Inspect the unit for any signs of damage that may have occurred during shipping. Retain the original packaging for future transport or storage.

4.2 Plasing

The PVX 12 can be used in various configurations:

• Vloer staan: Place the speaker directly on a stable floor surface.
• Tafelblad Mount: Position the speaker on a sturdy table or elevated platform.
• Monitor gebruik: The cabinet design allows for use as a floor monitor, angled towards the performer.
• Opgeskorte installasie: Utilize the integrated flying point inserts on the top, bottom, and right side for suspended mounting. Always consult with a qualified professional for overhead installations to ensure safety and compliance with local regulations.

Figure 2: The Peavey PVX 12 loudspeaker positioned for use as a floor monitor.

4.3 Verbindings

The PVX 12 is a passive loudspeaker and requires an external power amplifier. Connect the loudspeaker to a suitable amplifier using high-quality speaker cables. Ensure the amplifier's output impedance matches the speaker's 8 Ohm impedance. Use the input connector located on the rear panel.

Figure 3: Rear panel of the PVX 12, highlighting the input connector and impedance rating.

5. Bedryfsinstruksies

Once the PVX 12 loudspeaker is properly connected to a power amplifier and audio source, follow these steps for operation:

• Aanskakel-volgorde: Always power on your audio source (mixer, etc.) first, then your amplewendiger.
• Volumebeheer: Adjust the volume levels using your amplifier or mixer. Start with the amplifier volume at its lowest setting and gradually increase it to the desired listening level.
• Afskakelvolgorde: As jy klaar is, skakel jou amplifier first, then your audio source. This helps prevent pops and thumps that can damage speakers.
• Moniteringsvlakke: Pay attention to the sound quality. If you hear distortion, reduce the volume immediately to prevent damage.

6. Onderhoud

Proper maintenance ensures the longevity and performance of your PVX 12 loudspeaker.

• Skoonmaak: Use a soft, dry cloth to clean the exterior of the cabinet. For stubborn dirt, a slightly damp 'n Lap kan gebruik word, gevolg deur 'n droë lap. Vermy die gebruik van skuurmiddels of oplosmiddels.
• Roosterversorging: The steel grille protects the speaker components. If it becomes dusty, use a soft brush or vacuum cleaner with a brush attachment to gently remove dust.
• Berging: When not in use for extended periods, store the loudspeaker in a dry, temperature-controlled environment. If possible, use the original packaging or a protective cover.
• Inspeksie: Periodically check speaker cables and connectors for wear or damage. Replace any faulty cables immediately.

7. Probleemoplossing

If you encounter issues with your PVX 12 loudspeaker, refer to the following common troubleshooting steps:

• Geen klank:
  • Verseker die ampverligter is aangeskakel en funksioneer korrek.
  • Check all cable connections between the audio source, amplifier, and loudspeaker. Ensure they are secure and not damaged.
  • Verify the audio source is active and sending a signal.
  • Bevestig die amplifier's volume is not set to minimum or muted.
• Verwronge klank:
  • Verlaag die volumevlak op beide die amplifier and the audio source. Distortion often occurs when the signal is too strong for the amplifier of spreker.
  • Kyk of die amplifier's output power is appropriate for the PVX 12's power handling capabilities.
  • Inspect speaker cables for damage or short circuits.
• Lae volume:
  • Verhoog die volume op die ampverligter en klankbron.
  • Ensure all connections are correct and tight.
  • Verifieer dat die amplifier is providing sufficient power.

If these steps do not resolve the issue, contact Peavey customer support or a qualified service technician.

8. Spesifikasies

9. Waarborg en Ondersteuning

9.1 Waarborginligting

The Peavey PVX 12 Passive Loudspeaker comes with a 1-year limited warranty. Please refer to the warranty card included with your product or visit the official Peavey website for full details regarding warranty terms and conditions.

9.2 Kliëntediens

For technical assistance, service inquiries, or to purchase replacement parts, please contact Peavey customer support. You can find contact information and additional resources on the official Peavey webwebwerf: www.peavey.com/support
