PROFI COOK PC-KM 1004 Food Processor

1. Inleiding

Thank you for choosing the ProfiCook PC-KM 1004 Food Processor. This appliance is designed for versatile kitchen tasks, including mixing, kneading, beating, grinding, and blending. To ensure safe and efficient operation, please read this instruction manual thoroughly before first use and keep it for future reference.

2. Belangrike veiligheidsinstruksies

• Ontkoppel altyd die toestel van die kragtoevoer voor montering, demontage of skoonmaak.
• Moenie die motoreenheid in water of ander vloeistowwe dompel nie.
• Hou hande en gereedskap weg van bewegende dele tydens werking om beserings te voorkom.
• Ensure all attachments are securely locked in place before operating the appliance.
• Hierdie toestel is nie bedoel vir gebruik deur persone met verminderde fisiese, sensoriese of geestelike vermoëns, of 'n gebrek aan ervaring en kennis nie, tensy hulle toesig of instruksies oor die gebruik van die toestel gegee is deur 'n persoon wat verantwoordelik is vir hul veiligheid.
• Kinders moet onder toesig wees om te verseker dat hulle nie met die toestel speel nie.
• Moenie die toestel gebruik met 'n beskadigde koord of prop, of nadat die toestel wanfunksioneer of op enige manier beskadig is nie.
• Gebruik slegs oorspronklike bykomstighede en onderdele.

3. Produk verbyview en komponente

The ProfiCook PC-KM 1004 is a versatile kitchen machine equipped with various attachments for different culinary tasks.

Main Unit and Bowl

Prent: The main unit of the ProfiCook PC-KM 1004 food processor, featuring the robust motor housing and the large 6-liter stainless steel mixing bowl with a handle and a transparent splash guard lid. The bowl securely locks into the base for stable operation.

The main unit houses the powerful 1400 Watt motor and features a control panel for speed adjustment. The extra-large 6-liter stainless steel bowl is designed for processing significant quantities of ingredients.

Beheerpaneel

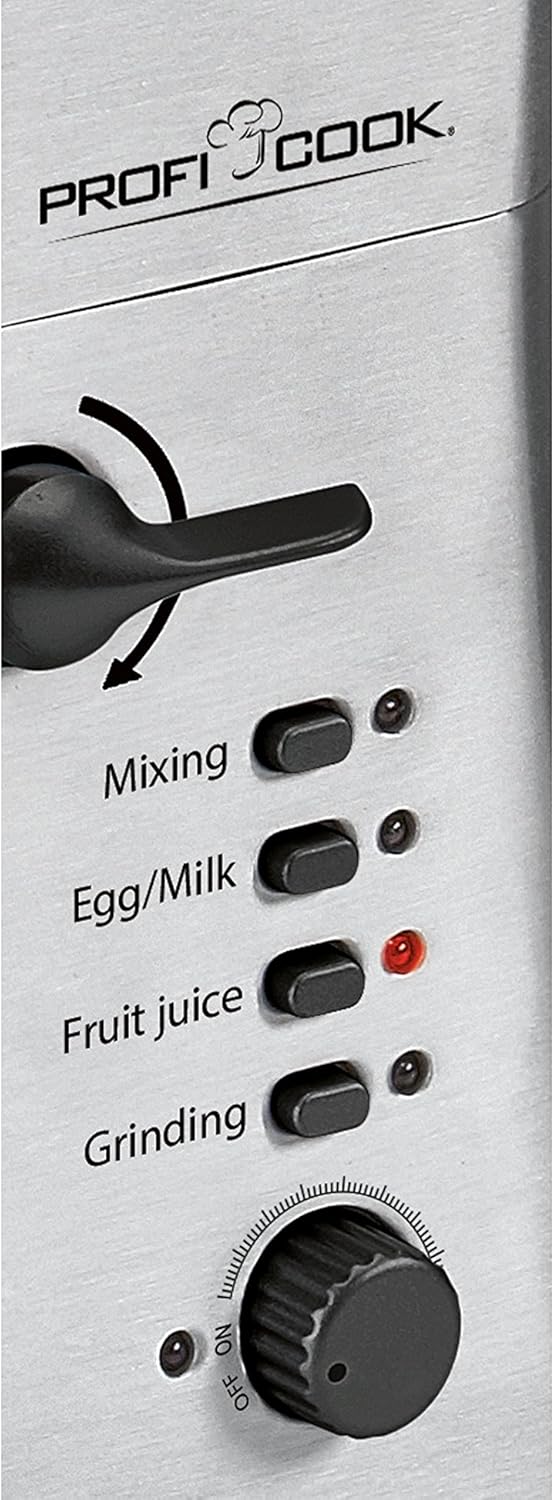

Prent: Close-up of the ProfiCook PC-KM 1004 control panel, showing the continuous speed adjustment dial and illuminated buttons for specific functions like Mixing, Egg/Milk, Fruit Juice, and Grinding. The lever for releasing the mixing arm is also visible.

The control panel includes a continuous speed adjustment dial and specific function buttons for optimized performance. The lever allows for easy lifting and lowering of the mixing arm.

Bykomstighede ingesluit

Prent: 'n Omvattende view of the accessories included with the ProfiCook PC-KM 1004 food processor. This includes the whisk, dough hook, flat beater, and various components for the meat grinder attachment such as different grinding plates and a sausage filler.

• Klits: For whipping cream, egg whites, and light batters.
• Deeghaak: For kneading heavy doughs like bread or pizza dough.
• Platklopper: For mixing cakes, cookies, and mashed potatoes.
• Vleismaal-aanhegsel: For grinding meat and making sausages.
• Blender Attachment: Vir die meng van vloeistowwe, smoothies en souse.

Vleismeul Aanhegsel

Prent: The meat grinder attachment securely mounted on the front port of the ProfiCook PC-KM 1004 food processor. It features a feeding tray, a grinding screw, and a cutting plate, ready for processing meat.

Blender aanhegsel

Prent: The robust glass blender attachment positioned on the top port of the ProfiCook PC-KM 1004 food processor. It includes a lid with a removable cap for adding ingredients during blending, ideal for smoothies and sauces.

4. Opstelling en eerste gebruik

1. Uitpak: Verwyder alle komponente versigtig uit die verpakking. Bewaar die verpakking vir toekomstige berging of vervoer.
2. Skoonmaak: Maak alle dele wat in aanraking met voedsel sal kom, skoon voor die eerste gebruik. Verwys na die afdeling "Onderhoud en Skoonmaak" vir gedetailleerde instruksies.
3. Plasing: Place the main unit on a stable, flat, and dry surface. Ensure adequate ventilation around the appliance.
4. Aanheg van die mengbak: Place the stainless steel mixing bowl onto the base and turn it clockwise until it locks securely in place.
5. Attaching the Mixing Arm: Lift the mixing arm using the release lever. Select the desired attachment (whisk, dough hook, or flat beater) and insert it into the attachment shaft. Turn it slightly until it clicks into place. Lower the mixing arm until it locks.
6. Attaching Other Accessories: For the meat grinder or blender, refer to their specific assembly instructions provided with the accessory. Ensure they are correctly and securely attached to the designated ports.
7. Kragverbinding: Steek die kragkabel in 'n geaarde elektriese aansluiting (230V).

5. Bedryfsinstruksies

Always ensure the appliance is switched off and unplugged before changing attachments or adding ingredients.

Using the Mixing Bowl Attachments (Whisk, Dough Hook, Flat Beater)

1. Ensure the mixing bowl and desired attachment are correctly installed.
2. Add ingredients to the mixing bowl. Do not overfill.
3. Lower the mixing arm and ensure it is locked.
4. Prop die toestel in.
5. Turn the speed dial to the desired setting. The appliance offers 4 speeds with continuous adjustment. Start with a low speed and gradually increase as needed.
6. For specific tasks, you may use the function buttons (e.g., "Mixing", "Egg/Milk").
7. After use, turn the speed dial to "OFF", unplug the appliance, and then lift the mixing arm to remove the bowl and attachment.

Gebruik die vleismeul

1. Assemble the meat grinder attachment according to its specific instructions, ensuring the desired grinding plate is in place.
2. Attach the assembled grinder to the front port of the main unit and secure it.
3. Place a bowl or plate under the grinder outlet to collect the processed food.
4. Cut meat into small pieces that fit into the feeding tube.
5. Plug in the appliance. Select the "Grinding" function button or set the speed dial to a medium setting.
6. Feed the meat into the tube using the food pusher. Never use your fingers or other utensils.
7. After use, turn the speed dial to "OFF", unplug the appliance, and disassemble the grinder for cleaning.

Gebruik die blender

1. Assemble the glass blender jug onto the top port of the main unit and secure it.
2. Add ingredients to the blender jug. Do not exceed the maximum fill line.
3. Plaas die deksel stewig op die blenderbeker.
4. Plug in the appliance. Select the "Fruit Juice" function button or set the speed dial to a desired blending speed.
5. For adding ingredients during blending, remove the small cap from the lid.
6. After use, turn the speed dial to "OFF", unplug the appliance, and disassemble the blender for cleaning.

6. Onderhoud en Skoonmaak

Behoorlike skoonmaak en onderhoud sal die lewensduur van jou toestel verleng.

• Ontkoppel altyd die toestel voordat dit skoongemaak word.
• Motor Eenheid: Vee die motoreenheid af met adamp lap. Moet dit nooit in water of ander vloeistowwe dompel nie.
• Mengbak en Aanhegsels: The stainless steel mixing bowl, whisk, dough hook, and flat beater can be washed in warm soapy water or in a dishwasher (check individual accessory instructions for dishwasher compatibility). Rinse thoroughly and dry immediately.
• Meat Grinder Parts: Disassemble all parts of the meat grinder. Wash them immediately after use in warm soapy water to prevent food residue from drying. Use a brush for hard-to-reach areas. Rinse and dry thoroughly.
• Blenderbeker: The glass blender jug can be washed in warm soapy water or in a dishwasher. Ensure the blade assembly is thoroughly cleaned.
• Berging: Store the cleaned and dried appliance and its accessories in a dry, safe place, away from direct sunlight and moisture.

7. Probleemoplossing

8. Tegniese spesifikasies

• Model: PC-KM 1004
• Handelsmerk: ProfiCook
• Krag: 1400 Watt
• Voltage: 230 Volt
• Mengbakkapasiteit: 6 liter
• Snelhede: 4 speeds with continuous electronic control
• Materiaal: Stainless Steel housing and bowl
• Afmetings (L x B x H): 24 x 42 x 40 cm
• Gewig: 11 kilogram
• Kenmerke: Integrated meat grinder, blender attachment

9. Waarborg en Kliëntediens

ProfiCook products are manufactured with care and undergo strict quality controls. In the unlikely event of a defect, please contact your retailer or the ProfiCook customer service department. Please retain your purchase receipt as proof of purchase for warranty claims.

For further assistance or inquiries, please visit the official ProfiCook website or contact their customer support. Information regarding spare parts availability is currently unavailable.
