Briggs & Stratton 798653 Vergasser Instruksiehandleiding

1. Produk verbyview

The Briggs & Stratton 798653 Carburetor is a genuine OEM replacement part designed for single-cylinder engines. This carburetor ensures proper fuel-air mixture delivery, which is crucial for optimal engine performance and longevity. It is specifically used on select 12 cubic inch horizontal Intek OHV engines.

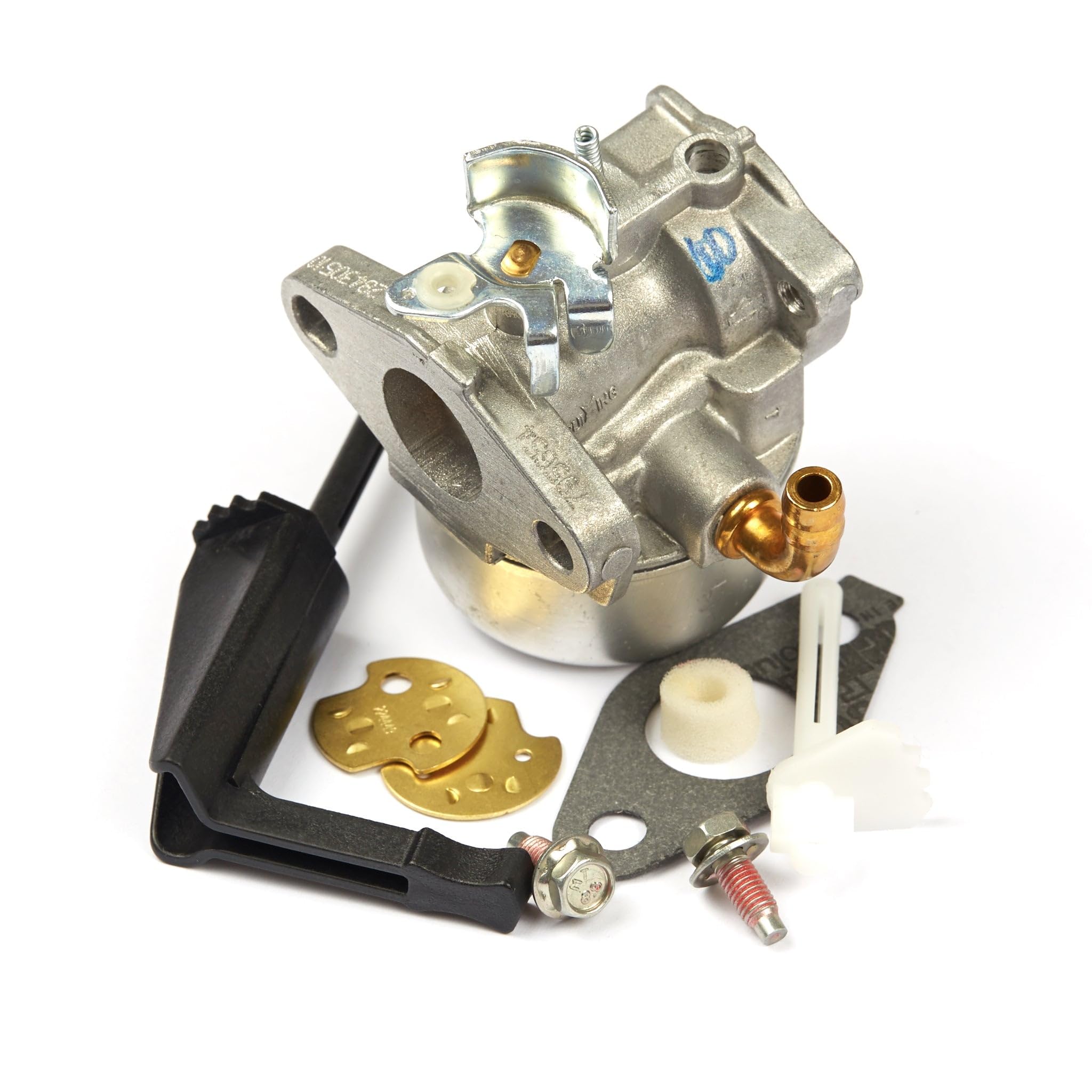

Image 1.1: Briggs & Stratton 798653 Carburetor. This image displays the complete carburetor unit, highlighting its main components and overall design.

Sleutel kenmerke:

• Oorspronklike Briggs & Stratton-onderdeel: Ensures compatibility and performance as per manufacturer standards.
• Modelnommer: 798653
• Enjinversoenbaarheid: Fits most 120000 and 121000 series Briggs & Stratton engines.
• Replaces Multiple Part Numbers: This carburetor replaces older Briggs & Stratton part numbers including 791077, 696981, 698860, 790182, 694508, 795069, 698859, 790180, 790290, 693865, and 697354.

2. Veiligheidsinligting

Always prioritize safety when working with engine components. Failure to follow safety instructions can result in serious injury or damage to equipment.

• Read Engine Manual: Consult your engine's specific owner's manual for detailed safety procedures and warnings.
• Ontkoppel die vonkprop: Before performing any service or maintenance, always disconnect the spark plug wire to prevent accidental engine starting.
• Werk in 'n goed geventileerde area: Fuel vapors are flammable and hazardous. Ensure adequate ventilation.
• Dra beskermende toerusting: Use safety glasses, gloves, and appropriate clothing to protect against fuel, oil, and sharp edges.
• Handle Fuel Carefully: Fuel is highly flammable. Store it in approved containers and avoid spills. Clean up any spills immediately.
• Warm oppervlaktes: Engine components can be hot. Allow the engine to cool before servicing.

3. Installasie

This section provides general steps for replacing a carburetor. Specific procedures may vary depending on your engine model. Refer to your engine's service manual for detailed instructions.

Gereedskap benodig:

• Socket set or wrenches
• Skroewedraaiers (platkop en Phillips)
• Tang
• Brandstoflyn clamps
• Maak lappe skoon
• New gaskets (often included with the carburetor)

Installasie stappe:

1. Berei die enjin voor:
   • Ensure the engine is cool and the spark plug wire is disconnected.
   • Turn off the fuel supply or drain the fuel tank if necessary.
   • Place clean rags around the carburetor area to catch any spilled fuel.
2. Verwyder die lugfiltersamestelling:
   • Carefully remove the air filter cover and the air filter element.
   • Unbolt and remove the air filter housing from the engine.
3. Ontkoppel brandstoflyn en skakels:
   • Use fuel line clamps to pinch off the fuel line, then disconnect it from the carburetor.
   • Carefully detach the throttle and choke linkages from the old carburetor. Note their positions for reassembly.


   Image 3.1: Carburetor components including gaskets and mounting hardware. This image shows the carburetor along with essential installation accessories like gaskets and screws.

4. Verwyder ou vergasser:
   • Unbolt the carburetor from the engine manifold.
   • Remove the old carburetor and any old gaskets.
5. Installeer Nuwe Vergasser:
   • Ensure all mounting surfaces are clean.
   • Place new gaskets in their correct positions.
   • Mount the new Briggs & Stratton 798653 Carburetor onto the engine manifold, ensuring it seats properly.
   • Secure the carburetor with the bolts, tightening them evenly.


   Beeld 3.2: Voorkant view of the Briggs & Stratton 798653 Carburetor. This perspective highlights the air intake and fuel inlet connections.



   Beeld 3.3: Sykant view of the Briggs & Stratton 798653 Carburetor. This view shows the various adjustment screws and linkage points.
6. Reconnect Fuel Line and Linkages:
   • Reconnect the fuel line to the carburetor and remove the clamps.
   • Reattach the throttle and choke linkages to their correct positions on the new carburetor.
7. Herinstalleer die lugfiltersamestelling:
   • Reattach the air filter housing, insert the air filter element, and secure the cover.
8. Finale tjeks:
   • Dubbelkontroleer alle verbindings vir styfheid en korrekte roetering.
   • Maak seker dat daar geen brandstof lekkasies is nie.
   • Sluit die vonkpropdraad weer aan.

4. Operating the Engine After Carburetor Replacement

After installing the new carburetor, follow these steps to start and operate your engine.

1. Voeg brandstof by: Ensure the fuel tank has fresh, clean fuel.
2. Prime the Carburetor (if applicable): Some carburetors have a primer bulb. Press it several times until fuel is visible in the bulb or fuel lines.
3. Stel Verstikking: For cold starts, set the choke to the "Full Choke" position. For warm starts, the choke may not be necessary.
4. Begin enjin: Follow your engine's specific starting procedure (e.g., pull starter cord, turn key).
5. Adjust Choke: As the engine warms up, gradually move the choke to the "Run" position.
6. Monitor prestasie: Listen for smooth engine operation. If the engine runs rough or stalls, further adjustments or troubleshooting may be required.

5. Onderhoud

Regular maintenance of your carburetor and engine components will ensure reliable performance and extend the life of your equipment.

• Use Fresh Fuel: Always use fresh, clean gasoline. Stale fuel can cause carburetor issues. Consider using a fuel stabilizer if storing the engine for extended periods.
• Skoon lugfilter: Regularly inspect and clean or replace the air filter to prevent dirt and debris from entering the carburetor.
• Inspekteer brandstoflyne: Check fuel lines for cracks, leaks, or deterioration. Replace as needed.
• Vergasser Skoonmaak: If performance issues arise, the carburetor may need cleaning. This typically involves disassembling, cleaning with carburetor cleaner, and reassembling with new gaskets. This procedure should only be performed by individuals with appropriate mechanical knowledge.

6. Probleemoplossing Algemene kwessies

If your engine experiences problems after carburetor replacement, consider the following common issues:

If troubleshooting steps do not resolve the issue, consult a qualified service technician or refer to your engine's comprehensive service manual.

7. Spesifikasies

8. Waarborg en Ondersteuning

For information regarding the warranty of your Briggs & Stratton 798653 Carburetor, please refer to the official Briggs & Stratton website or contact their customer support directly. Genuine Briggs & Stratton parts are typically covered by the manufacturer's standard warranty.

Kontakinligting:
Besoek die amptenaar Briggs en Stratton webwebwerf for support resources, service locator, and contact details.
