1. Inleiding
Thank you for choosing the Franke FFPS200 Mambo Single Handle Pull-Out Kitchen Faucet. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new faucet. Please read this manual thoroughly before installation and retain it for future reference.
Image: The Franke FFPS200 Mambo faucet in a kitchen setting.
2. Veiligheidsinligting
Neem altyd die volgende veiligheidsmaatreëls in ag tydens installasie en gebruik:
- Turn off the main water supply before beginning any installation or maintenance.
- Dra toepaslike persoonlike beskermende toerusting, soos veiligheidsbril en handskoene.
- Maak seker dat alle verbindings stewig is om lekkasies te voorkom.
- Indien u onseker is oor enige deel van die installasie, raadpleeg 'n gekwalifiseerde loodgieter.
- Moenie harde chemikalieë of skuurmiddels op die kraan se afwerking gebruik nie.
3. Pakketinhoud
Verifieer dat alle komponente teenwoordig is voor installasie:
- Franke FFPS200 Mambo Faucet Body
- Pull-Out Spray Head
- Mounting Hardware (nut, washer, gasket)
- Hot and Cold Water Supply Lines (20" stainless flex with 0.75 comp-fittings)
- Gewig vir uittrekslang
- Installasiegids (hierdie handleiding)
4. Opstelling en installering
Follow these steps for proper installation of your Franke FFPS200 faucet:
- Berei die wasbak voor: Ensure the sink has a 1-3/8-inch diameter hole for faucet mounting. Clean the area around the faucet hole.
- Monteer die kraan: Insert the faucet body through the hole in the sink or countertop. From underneath, secure the faucet using the provided mounting nut and washer. The 1.5-inch long base mounting nut facilitates easy under-counter installation. Tighten securely but do not overtighten.
- Verbind watertoevoerlyne: Attach the hot and cold water supply lines to the corresponding water supply valves. The 20-inch stainless flex supply lines with 0.75 comp-fittings allow direct connection to most common supply valves. Ensure a watertight seal.
- Installeer uittrekbare slang en gewig: Connect the pull-out hose to the faucet's main body connection point. Attach the hose weight to the pull-out hose at the designated location, typically below the sink, to ensure smooth retraction of the spray head.
- Toets vir lekkasies: Once all connections are made, slowly turn on the main water supply. Check all connections for any signs of leaks. Operate the faucet to ensure proper water flow and temperature control.

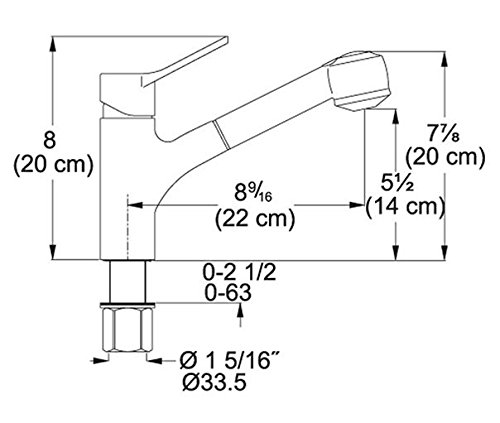

Image: Technical drawing with key dimensions for installation.
5. Bedryfsinstruksies
The Franke FFPS200 Mambo faucet features a single handle for easy control and a convenient pull-out spray head.
- Watervloei en temperatuur: The extra-large single handle controls both water flow and temperature. Lift the handle to increase flow. Move the handle left for hot water and right for cold water.
- Uittrekbare spuitkop: Grasp the spray head and pull it out from the spout. The flexible hose allows for extended reach. Press the button on the spray head to switch between spray patterns (if applicable). After use, guide the spray head back into the spout; the hose weight will assist in smooth retraction.
- Tuit Draai: The faucet spout has a 150-degree swivel range, allowing you to direct water flow across a wide area of your sink.
6. Onderhoud en Skoonmaak
Proper care will ensure the longevity and appearance of your Franke faucet.
- Skoonmaak van die afwerking: Maak die chroomafwerking gereeld skoon met 'n sagte, damp cloth and mild soap. Rinse thoroughly and dry with a soft cloth to prevent water spots. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Keramiek patroon: The faucet is equipped with a durable ceramic cartridge designed for leak-free operation and easy servicing. If you experience persistent drips or leaks, the cartridge may need inspection or replacement. Consult a professional if necessary.
- Onderhoud van belugter: Periodically unscrew the aerator from the spray head and clean any mineral deposits or debris. This helps maintain optimal water flow.
7. Probleemoplossing
Verwys na die volgende tabel vir algemene probleme en hul oplossings:
| Probleem | Moontlike oorsaak | Oplossing |
|---|---|---|
| Lae Watervloei | Clogged aerator; partially closed supply valve | Clean aerator; fully open supply valves |
| Lek uit tuit | Worn ceramic cartridge | Replace ceramic cartridge (consult professional) |
| Lekkasie by die basis | Loose mounting nut; damaged gasket | Tighten mounting nut; inspect and replace gasket |
| Spray Head Does Not Retract | Hose weight dislodged or obstructed | Check and reposition hose weight; clear obstructions |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Franke customer support.
8. Spesifikasies
- Handelsmerk: Franke
- Modelnommer: FFPS200
- Voltooi tipe: Chrome
- Materiaal: Metaal
- Aantal handvatsels: 1
- Gattelling: 1
- Maksimum vloeitempo: 2.2 Gallonne Per Minuut (GPM)
- Tuit Hoogte: 5.5 duim
- Tuit bereik: 8.5625 Inches (from product description, specification says 5.5 inches, using description's more specific value)
- Hanteerligging: Top
- Installation Hole Requirement: 1-3/8 duim
- Patroon tipe: Keramiek
9. Waarborg en Ondersteuning
Franke products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty details, including coverage and duration, please refer to the warranty card included with your purchase or visit the official Franke website. For technical assistance, replacement parts, or customer support, please contact Franke customer service directly.
