Technaxx Wireless CarPlay & Android Car Monitor TX-361 User Manual

1. Inleiding

This manual provides essential information for the safe and efficient operation of your Technaxx Wireless CarPlay & Android Car Monitor TX-361. Please read this manual thoroughly before using the device and retain it for future reference. The TX-361 is designed to integrate modern smartphone connectivity, including Apple CarPlay and Android Auto, into your vehicle without requiring a complex car radio replacement. It also features an integrated DAB digital radio for enhanced audio experience.

2. Veiligheidsinligting

• Gebruik die toestel altyd verantwoordelik en in ooreenstemming met plaaslike verkeerswette. Afgeleide bestuur kan tot ongelukke lei.
• Moenie probeer om die toestel uitmekaar te haal of te wysig nie. Dit kan die waarborg ongeldig maak en veiligheidsrisiko's inhou.
• Hou die toestel weg van uiterste temperature, direkte sonlig en vog.
• Maak seker dat die toestel stewig gemonteer is en nie jou view of inmeng met voertuigkontroles.
• Use only the provided power cable and accessories.
• If the device malfunctions, disconnect it from the power source and contact customer support.

3. Pakketinhoud

Verifieer dat al die items wat hieronder gelys word, in jou pakket ingesluit is:

• DAB 7-inch CarPlay with Touch Screen TX-361
• Power Supply (USB-A to USB-C, 1.5m cable)
• AUX Cable (1m)
• DAB-antenne
• Holder (Mounting Bracket)
• Gebruikershandleiding

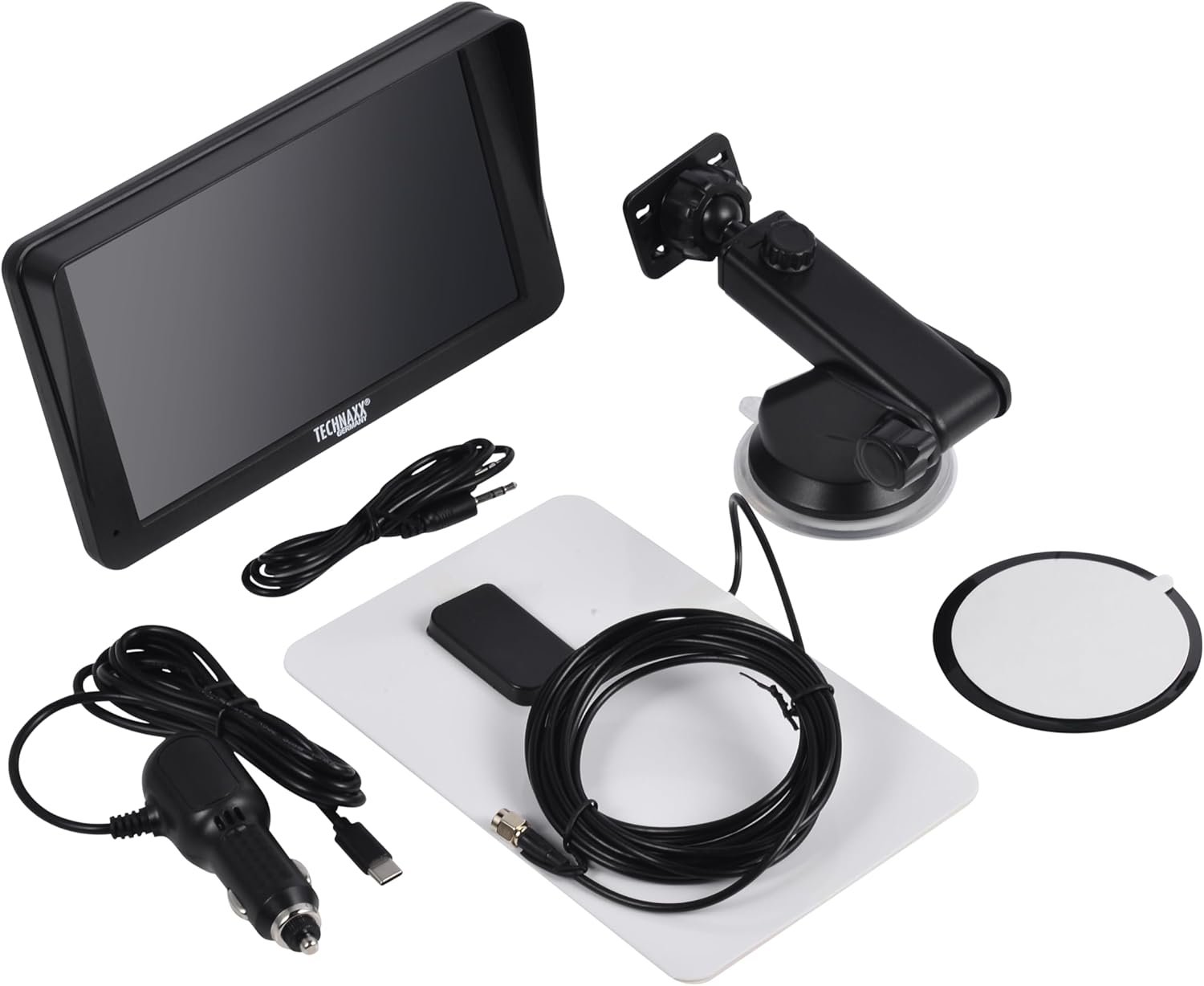

Image: All components included in the Technaxx TX-361 package, neatly laid out.

4. Produk verbyview

Familiarize yourself with the main components of your TX-361 monitor.

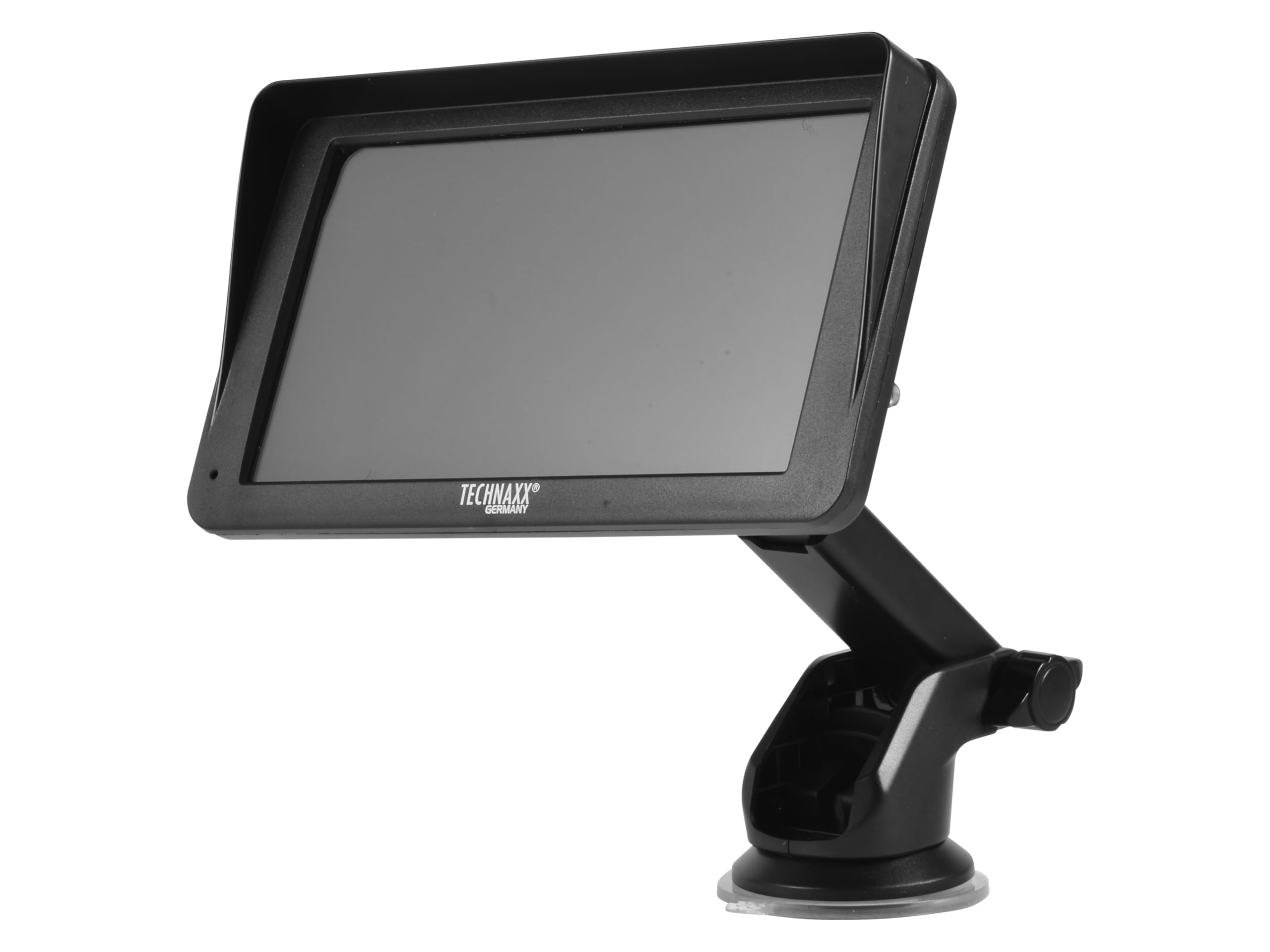

Beeld: Voorkant view of the TX-361 monitor with its 7-inch display and 'TECHN AXX GERMANY' branding, attached to the adjustable mounting stand.

Beeld: Agter view of the TX-361 monitor, highlighting the ventilation grilles and the attachment point for the mounting bracket.

Beeld: Gedetailleerd view of the right side of the TX-361 monitor, showing the power button, reset button, USB-C power input, AUX output, and USB-A port.

4.1. Toestelkomponente

• 7-inch Capacitive Touch Screen: Main display for all functions.
• Kragknoppie: Located on the top right side.
• Herstel-knoppie: Small pinhole button for system reset.
• USB-C-poort: Vir kragtoevoer.
• AUX-uitset: 3.5mm jack for wired audio transmission.
• USB-A-poort: For media playback or charging external devices.
• DAB Antenna Input: Connector for the external DAB antenna.
• Geïntegreerde luidspreker: For direct audio playback.

5. Opstelling

5.1. Monteer die toestel

The TX-361 can be mounted on your vehicle's windscreen or dashboard using the provided holder.

1. Attach the monitor to the mounting bracket.
2. For Windscreen Mounting: Clean the desired area on the windscreen. Press the suction cup firmly against the glass and engage the lever to secure it.
3. For Dashboard Mounting: Clean the desired area on the dashboard. If necessary, use the adhesive disc provided for a more secure attachment point for the suction cup. Press the suction cup firmly and engage the lever.
4. Verstel die hoek van die monitor vir optimaal viewing without obstructing your driving view.

Image: The TX-361 monitor securely mounted on a car dashboard, showing its position relative to the driver's view.

Image: The TX-361 monitor mounted on a car windscreen, demonstrating an alternative placement option.

5.2. Kragverbinding

1. Connect the USB-C end of the power cable to the USB-C port on the monitor.
2. Plug the USB-A end of the power cable into the provided 12V/24V cigarette lighter adapter.
3. Insert the cigarette lighter adapter into your vehicle's 12V/24V power socket. The device will power on automatically or can be turned on using the power button.

5.3. DAB Antenna Connection

For optimal DAB radio reception, connect the included DAB antenna:

1. Connect the DAB antenna cable to the dedicated DAB antenna input on the monitor.
2. Mount the DAB antenna on your windscreen or another suitable location, ensuring it has clear line of sight for best signal reception.

6. Bedryfsinstruksies

6.1. Skakel aan/af

• Krag aan: The device typically powers on automatically when connected to the vehicle's power. If not, press and hold the power button on the top right side.
• Skakel af: Press and hold the power button until the device shuts down. A short press will turn the screen off/on.

6.2. Initial Setup and Smartphone Connection

The TX-361 supports wireless Apple CarPlay and Android Auto via Wi-Fi and Bluetooth 5.0.

1. Maak seker dat jou slimfoon se Wi-Fi en Bluetooth geaktiveer is.
2. On the TX-361 monitor, navigate to the CarPlay or Android Auto section.
3. The monitor will display a Bluetooth name. On your smartphone, search for and connect to this Bluetooth device.
4. Once connected via Bluetooth, the device will prompt you to enable Wi-Fi for CarPlay/Android Auto functionality. Confirm the connection on your phone.
5. After successful pairing, Apple CarPlay or Android Auto will launch automatically on the monitor.

6.3. Raakskerm werking

The 7-inch capacitive touchscreen allows for intuitive control:

• Tik: Kies items of bevestig aksies.
• Swiep: Navigate through menus or lists.
• Knyp-om-te-Zoem: (Where supported, e.g., in navigation apps) Adjust map zoom levels.

6.4. DAB Digital Radio

To use the integrated DAB digital radio:

1. Ensure the DAB antenna is properly connected.
2. From the main menu, select the 'DAB Radio' option.
3. The device will automatically scan for available DAB stations.
4. Select your desired station from the list.

6.5. FM Radio

For traditional FM radio reception:

1. From the main menu, select the 'FM Radio' option.
2. Use the on-screen controls to scan for stations or manually tune to a frequency.

6.6. Oudio-uitvoeropsies

The TX-361 offers several ways to transmit audio to your vehicle's sound system:

• Geïntegreerde luidspreker: Audio will play directly from the monitor's built-in speaker.
• AUX kabel: Connect the provided 3.5mm AUX cable from the monitor's AUX output to your car's AUX input. Select 'AUX' as the input source on your car radio.
• FM-uitsending: Select an unused FM frequency on the TX-361 and tune your car radio to the same frequency. Audio will be transmitted wirelessly to your car's speakers.

7. Onderhoud

• Skoonmaak: Gebruik 'n sagte, droë lap om die skerm en die buitekant van die toestel skoon te maak. Moenie skuurmiddels of oplosmiddels gebruik nie.
• Berging: Indien die toestel vir 'n lang tydperk gestoor word, ontkoppel dit van die kragtoevoer en bêre dit op 'n koel, droë plek.
• Sagteware-opdaterings: Kontroleer die vervaardiger se gereeld webwebwerf vir enige beskikbare firmware-opdaterings om optimale werkverrigting te verseker.

8. Probleemoplossing

9. Spesifikasies

10. Waarborg en Ondersteuning

Technaxx products are covered by a manufacturer's warranty. For detailed warranty information, please refer to the warranty card included with your product or visit the official Technaxx website. For technical support, troubleshooting assistance, or service inquiries, please contact Technaxx customer support through their official channels.

You can often find additional resources, FAQs, and contact information on the Technaxx official webwebwerf.
